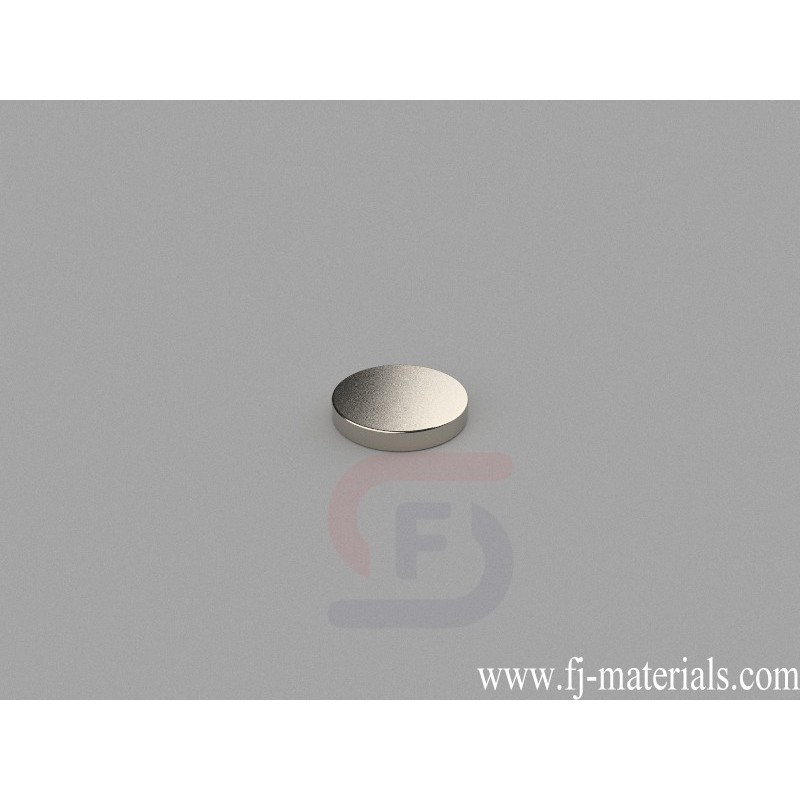

6mm dia. x 1mm thick Round Disc Magnets | D-D6H1-N50
D-D6H1-N50 Neodymium Magnet, 6x1mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 6mm dia. x 1mm thick, Axial magnetized. Pull force is approximately 0.96 lbs (0.44kg).
D-D6H1-N50 Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 6mm dia. x 1mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.96 lbs (0.44kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D6H1-N50 Neodymium Magnet, 6x1mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 6mm dia. x 1mm thick, Axial magnetized. Pull force is approximately 0.96 lbs (0.44kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D6H1-N50
Data sheet
- Item Number
- D-D6H1-N50
- Material
- NdFeB
- Grade
- N50
- Size
- 6mm dia. x 1mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.212g
- Pull Force
- 0.96 lbs (0.44kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
D-D6H1-N50 Neodymium Magnet, 6x1mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 6mm dia. x 1mm thick, Axial magnetized. Pull force is approximately 0.96 lbs (0.44kg).
