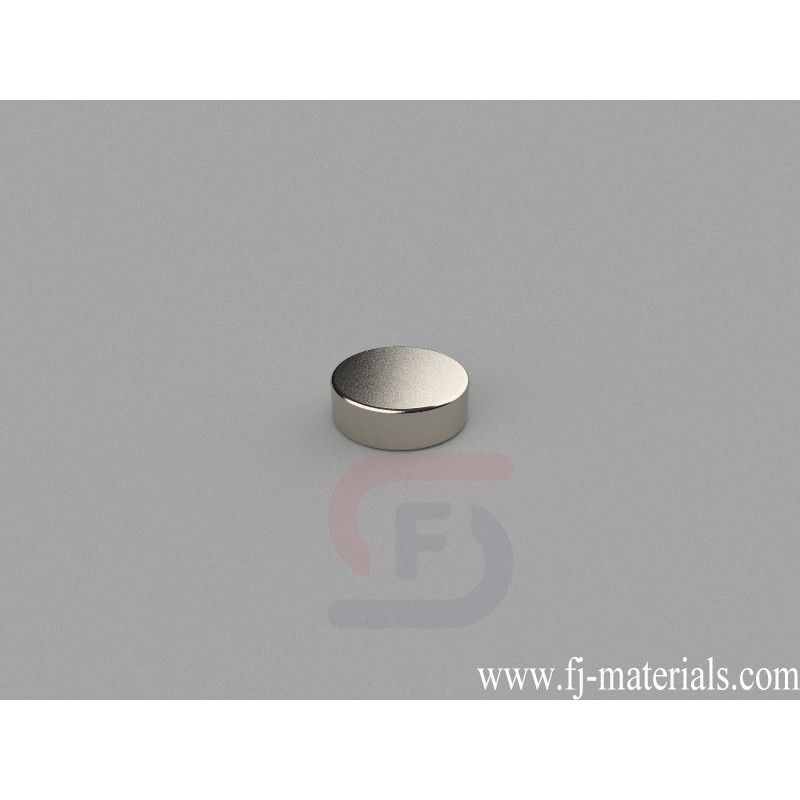

6mm dia. x 2mm thick Round Disc Magnets | D-D6H2-N42SH

D-D6H2-N42SH Neodymium Magnet, 6x2mm Disc Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 6mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 1.67 lbs (0.76kg).

D-D6H2-N42SH Neodymium Disc Magnets is made from high perfermance N42SH NdFeB. The dimesion is 6mm dia. x 2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.67 lbs (0.76kg). Magnetization direction: Axial (Poles on Flat Ends)

D-D6H2-N42SH Neodymium Magnet, 6x2mm Disc Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 6mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 1.67 lbs (0.76kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D-D6H2-N42SH

Data sheet

Item Number
D-D6H2-N42SH
Material
NdFeB
Grade
N42SH
Size
6mm dia. x 2mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.424g
Pull Force
1.67 lbs (0.76kg)
Diameter
B. 3.18-6.35mm
Thickness
A. 0.00-3.18mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
