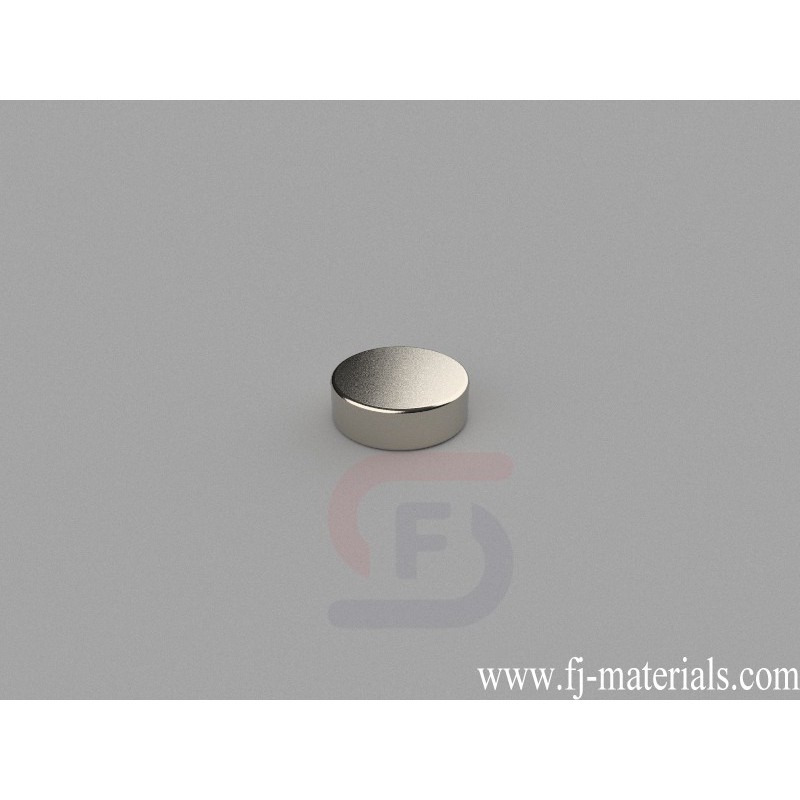

6mm dia. x 2mm thick Round Disc Magnets | D-D6H2-N45
D-D6H2-N45 Neodymium Magnet, 6x2mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 6mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 1.77 lbs (0.80kg).
D-D6H2-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 6mm dia. x 2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.77 lbs (0.80kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D6H2-N45 Neodymium Magnet, 6x2mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 6mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 1.77 lbs (0.80kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D6H2-N45
Data sheet
- Item Number
- D-D6H2-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 6mm dia. x 2mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.424g
- Pull Force
- 1.77 lbs (0.80kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
D-D6H2-N45 Neodymium Magnet, 6x2mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 6mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 1.77 lbs (0.80kg).
