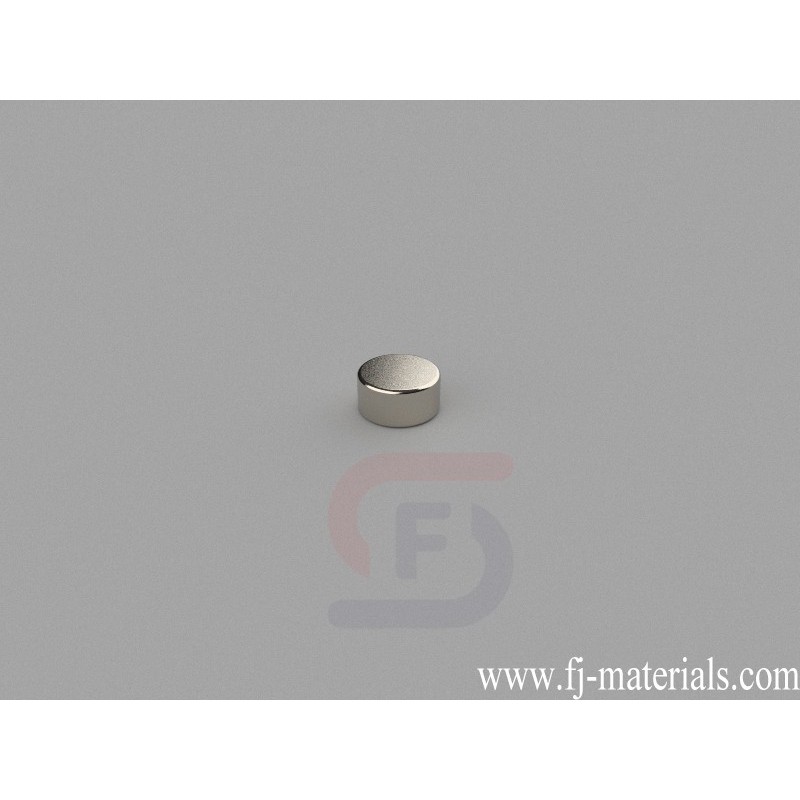

6mm dia. x 3mm thick Round Disc Magnets | D-D6H3-N42SH
D-D6H3-N42SH Neodymium Magnet, 6x3mm Disc Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 6mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 2.50 lbs (1.14kg).
D-D6H3-N42SH Neodymium Disc Magnets is made from high perfermance N42SH NdFeB. The dimesion is 6mm dia. x 3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 2.50 lbs (1.14kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D6H3-N42SH Neodymium Magnet, 6x3mm Disc Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 6mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 2.50 lbs (1.14kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D6H3-N42SH
Data sheet
- Item Number
- D-D6H3-N42SH
- Material
- NdFeB
- Grade
- N42SH
- Size
- 6mm dia. x 3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.636g
- Pull Force
- 2.50 lbs (1.14kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
D-D6H3-N42SH Neodymium Magnet, 6x3mm Disc Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 6mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 2.50 lbs (1.14kg).
