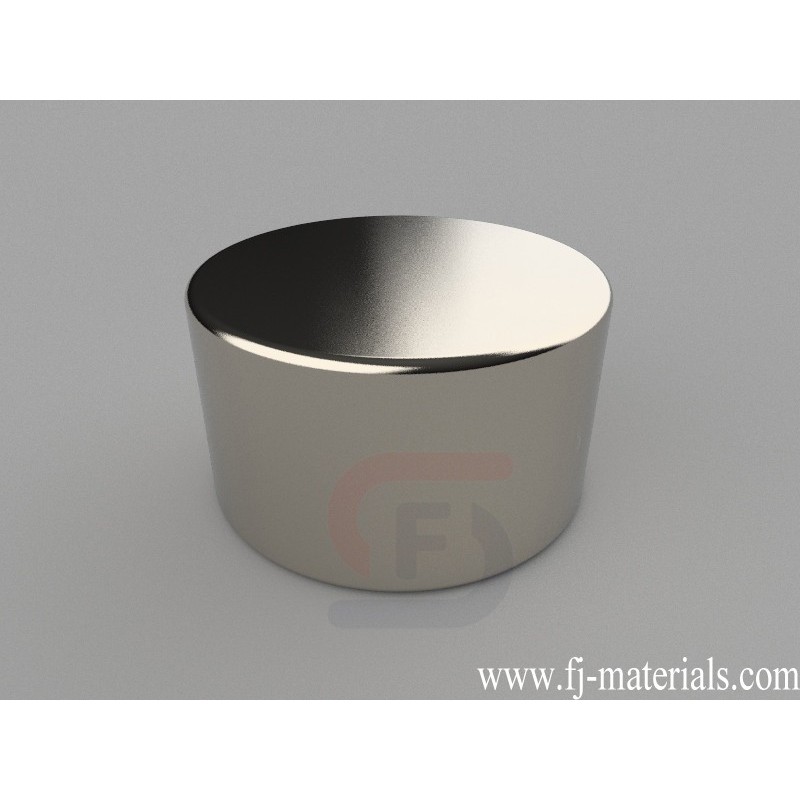

70mm dia. x 40mm thick Round Disc Magnets | D-D70H40-N48
D-D70H40-N48 Neodymium Magnet, 70x40mm Disc Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 70mm dia. x 40mm thick, Axial magnetized. Pull force is approximately 437.13 lbs (198.69kg).
D-D70H40-N48 Neodymium Disc Magnets is made from high perfermance N48 NdFeB. The dimesion is 70mm dia. x 40mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 437.13 lbs (198.69kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D70H40-N48 Neodymium Magnet, 70x40mm Disc Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 70mm dia. x 40mm thick, Axial magnetized. Pull force is approximately 437.13 lbs (198.69kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D70H40-N48
Data sheet
- Item Number
- D-D70H40-N48
- Material
- NdFeB
- Grade
- N48
- Size
- 70mm dia. x 40mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1154.535g
- Pull Force
- 437.13 lbs (198.69kg)
- Diameter
- H. 50.8-254mm
- Thickness
- G. 25.4-50.8mm
D-D70H40-N48 Neodymium Magnet, 70x40mm Disc Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 70mm dia. x 40mm thick, Axial magnetized. Pull force is approximately 437.13 lbs (198.69kg).
