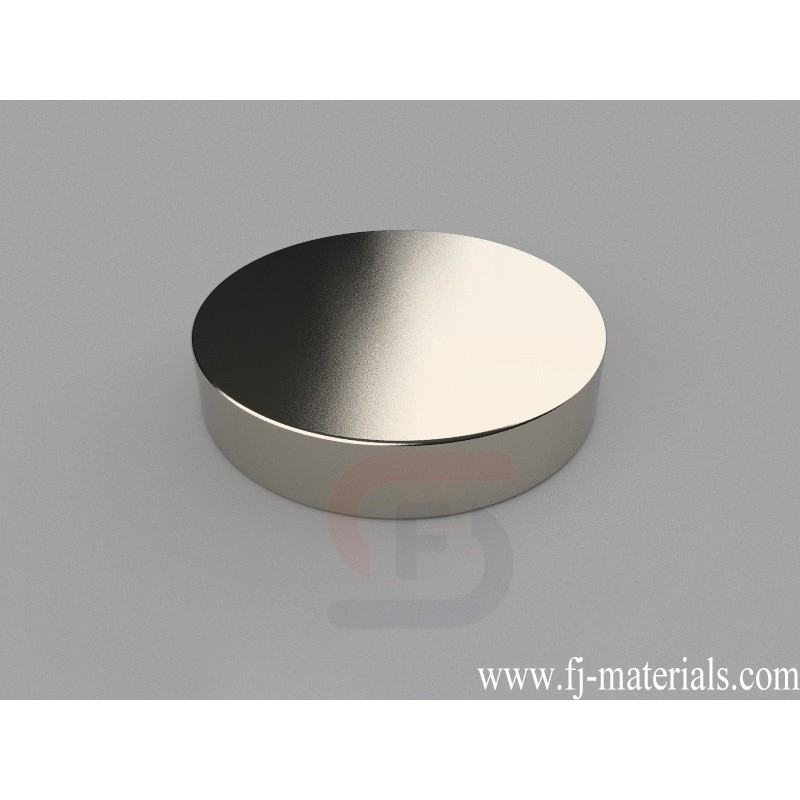

75mm dia. x 15mm thick Round Disc Magnets | D-D75H15-N38
D-D75H15-N38 Neodymium Magnet, 75x15mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 75mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 142.26 lbs (64.66kg).
D-D75H15-N38 Neodymium Disc Magnets is made from high perfermance N38 NdFeB. The dimesion is 75mm dia. x 15mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 142.26 lbs (64.66kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D75H15-N38 Neodymium Magnet, 75x15mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 75mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 142.26 lbs (64.66kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D75H15-N38
Data sheet
- Item Number
- D-D75H15-N38
- Material
- NdFeB
- Grade
- N38
- Size
- 75mm dia. x 15mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 497.010g
- Pull Force
- 142.26 lbs (64.66kg)
- Diameter
- H. 50.8-254mm
- Thickness
- E. 12.7-19.05mm
D-D75H15-N38 Neodymium Magnet, 75x15mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 75mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 142.26 lbs (64.66kg).
