76.2mm dia. x 50.8mm thick Round Disc Magnets | D-D76.2H50.8-N52

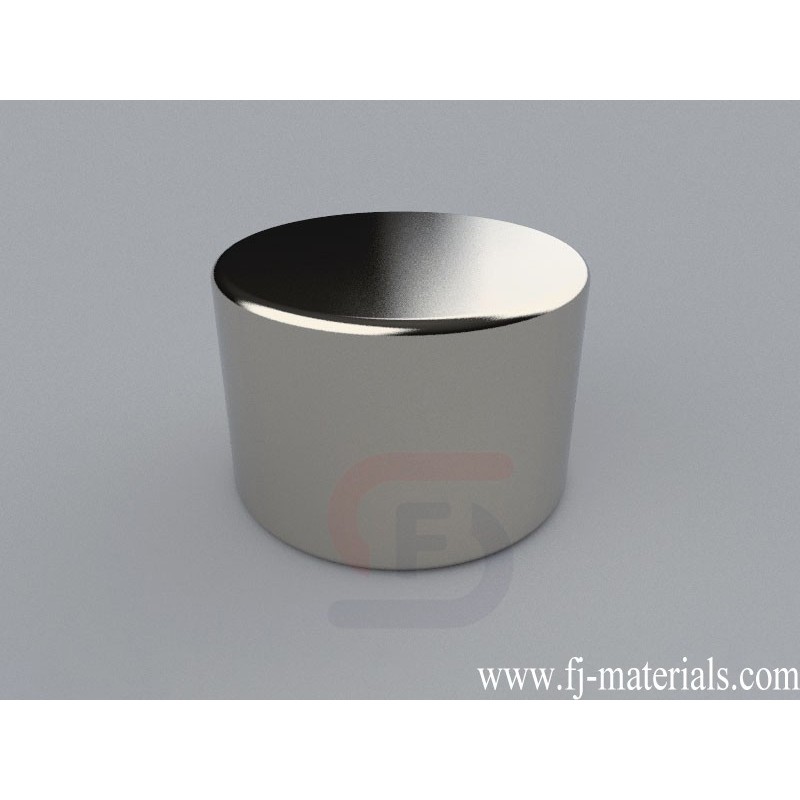

D-D76.2H50.8-N52 Neodymium Magnet, 76.2x50.8mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 76.2mm dia. x 50.8mm thick, Axial magnetized. Pull force is approximately 639.35 lbs (290.61kg).
D-D76.2H50.8-N52 Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 76.2mm dia. x 50.8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 639.35 lbs (290.61kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D76.2H50.8-N52 Neodymium Magnet, 76.2x50.8mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 76.2mm dia. x 50.8mm thick, Axial magnetized. Pull force is approximately 639.35 lbs (290.61kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D76.2H50.8-N52
Data sheet
- Item Number
- D-D76.2H50.8-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 76.2mm dia. x 50.8mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1737.500g
- Pull Force
- 639.35 lbs (290.61kg)
- Diameter
- H. 50.8-254mm
- Thickness
- G. 25.4-50.8mm
D-D76.2H50.8-N52 Neodymium Magnet, 76.2x50.8mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 76.2mm dia. x 50.8mm thick, Axial magnetized. Pull force is approximately 639.35 lbs (290.61kg).
