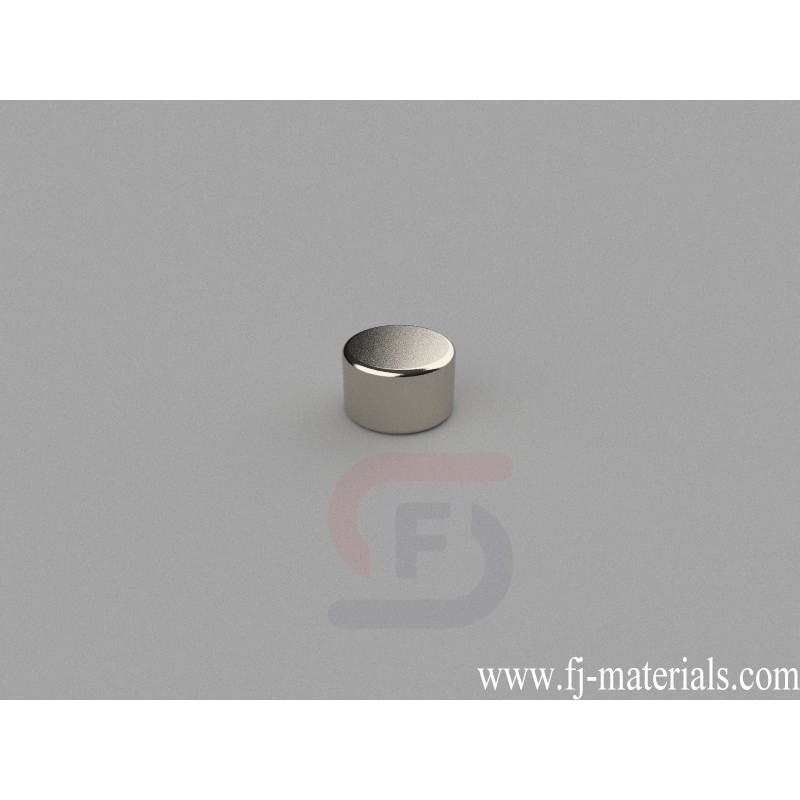

8mm dia. x 5mm thick Round Disc Magnets | D-D8H5-N42SH

D-D8H5-N42SH Neodymium Magnet, 8x5mm Disc Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 8mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 5.55 lbs (2.52kg).

D-D8H5-N42SH Neodymium Disc Magnets is made from high perfermance N42SH NdFeB. The dimesion is 8mm dia. x 5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 5.55 lbs (2.52kg). Magnetization direction: Axial (Poles on Flat Ends)

D-D8H5-N42SH Neodymium Magnet, 8x5mm Disc Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 8mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 5.55 lbs (2.52kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D-D8H5-N42SH

Data sheet

Item Number
D-D8H5-N42SH
Material
NdFeB
Grade
N42SH
Size
8mm dia. x 5mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.885g
Pull Force
5.55 lbs (2.52kg)
Diameter
C. 6.35-9.53mm
Thickness
B. 3.18-6.35mm
