9.52mm dia. x 1.58mm thick Round Disc Magnets | D-D9.52H1.58-N52

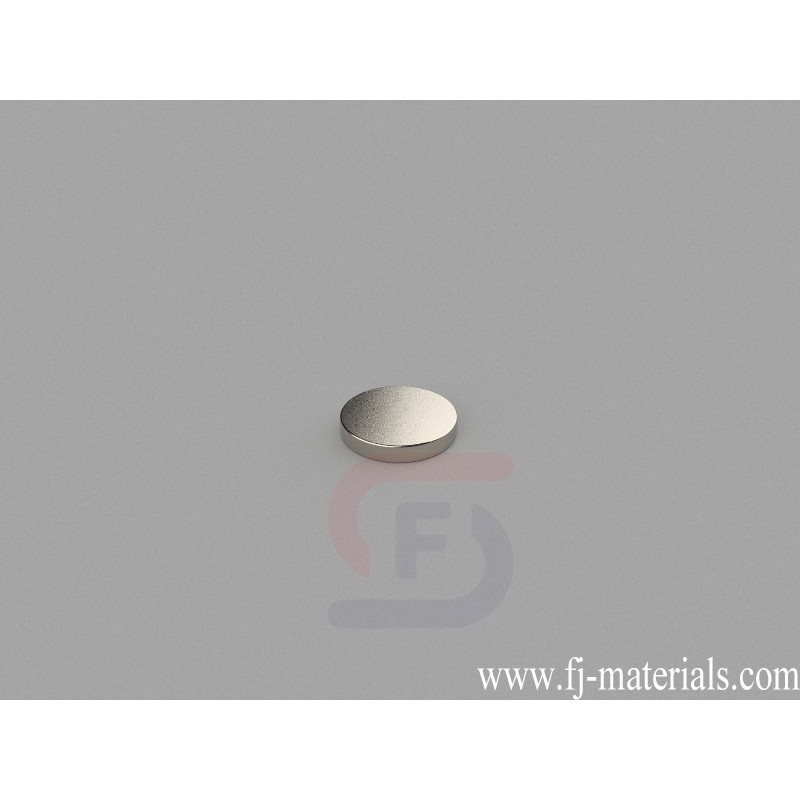

D-D9.52H1.58-N52 Neodymium Magnet, 9.52x1.58mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 9.52mm dia. x 1.58mm thick, Axial magnetized. Pull force is approximately 2.48 lbs (1.13kg).
D-D9.52H1.58-N52 Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 9.52mm dia. x 1.58mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 2.48 lbs (1.13kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D9.52H1.58-N52 Neodymium Magnet, 9.52x1.58mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 9.52mm dia. x 1.58mm thick, Axial magnetized. Pull force is approximately 2.48 lbs (1.13kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D9.52H1.58-N52
Data sheet
- Item Number
- D-D9.52H1.58-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 9.52mm dia. x 1.58mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.843g
- Pull Force
- 2.48 lbs (1.13kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- A. 0.00-3.18mm
D-D9.52H1.58-N52 Neodymium Magnet, 9.52x1.58mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 9.52mm dia. x 1.58mm thick, Axial magnetized. Pull force is approximately 2.48 lbs (1.13kg).
