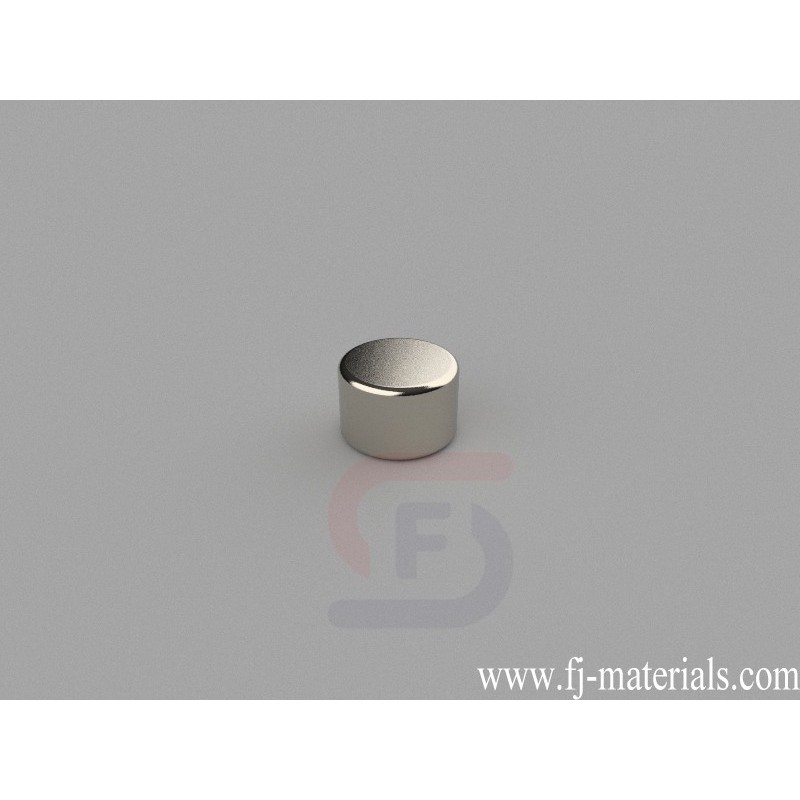

9.5mm dia. x 6.35mm thick Round Disc Magnets | D-D9.5H6.35-N45
D-D9.5H6.35-N45 Neodymium Magnet, 9.5x6.35mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 9.5mm dia. x 6.35mm thick, Axial magnetized. Pull force is approximately 8.89 lbs (4.04kg).
D-D9.5H6.35-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 9.5mm dia. x 6.35mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 8.89 lbs (4.04kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D9.5H6.35-N45 Neodymium Magnet, 9.5x6.35mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 9.5mm dia. x 6.35mm thick, Axial magnetized. Pull force is approximately 8.89 lbs (4.04kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D9.5H6.35-N45
Data sheet
- Item Number
- D-D9.5H6.35-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 9.5mm dia. x 6.35mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 3.376g
- Pull Force
- 8.89 lbs (4.04kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- B. 3.18-6.35mm
D-D9.5H6.35-N45 Neodymium Magnet, 9.5x6.35mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 9.5mm dia. x 6.35mm thick, Axial magnetized. Pull force is approximately 8.89 lbs (4.04kg).
