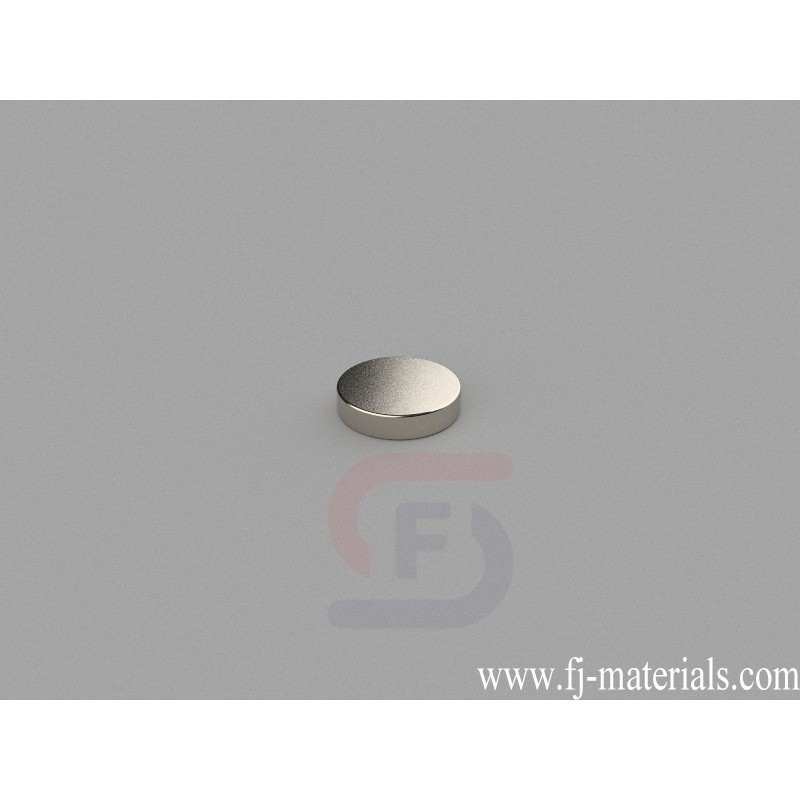

9mm dia. x 2mm thick Round Disc Magnets | D-D9H2-N48BNi
D-D9H2-N48BNi Neodymium Magnet, 9x2mm Disc Magnet is made of Grade N48 NdFeB, Black Nickel Plated. The dimension is 9mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 2.81 lbs (1.28kg).
D-D9H2-N48BNi Neodymium Disc Magnets is made from high perfermance N48 NdFeB. The dimesion is 9mm dia. x 2mm thick, Black Nickel (BNi) coating. Pull force: 2.81 lbs (1.28kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D9H2-N48BNi Neodymium Magnet, 9x2mm Disc Magnet is made of Grade N48 NdFeB, Black Nickel Plated. The dimension is 9mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 2.81 lbs (1.28kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D9H2-N48BNi
Data sheet
- Item Number
- D-D9H2-N48BNi
- Material
- NdFeB
- Grade
- N48
- Size
- 9mm dia. x 2mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Black Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.954g
- Pull Force
- 2.81 lbs (1.28kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- A. 0.00-3.18mm
D-D9H2-N48BNi Neodymium Magnet, 9x2mm Disc Magnet is made of Grade N48 NdFeB, Black Nickel Plated. The dimension is 9mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 2.81 lbs (1.28kg).
