1/8 dia. x 1/10 inch thick Round Disc Magnets | D2H1

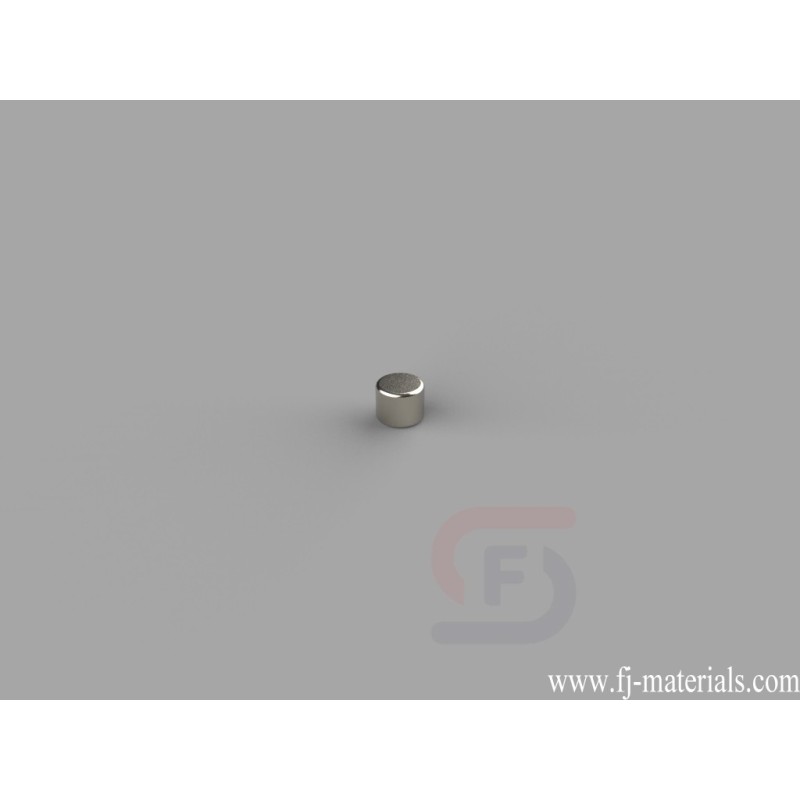

D2H1 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/8" dia. x 1/10" thick, Axial magnetized. Pull force is approximately 0.62 lbs.
Yiwu Fenjiao E-commerce Firm supply D2H1 Neodymium Disc Magnets with high quality at competitive price.
D2H1 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/8" dia. x 1/10" thick, Axial magnetized. Pull force is approximately 0.62 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D2H1
Data sheet
- Item Number
- D2H1
- Material
- NdFeB
- Grade
- N42
- Size
- 1/8" dia. x 1/10" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0213 oz. (0.603 g)
- Pull Force
- 0.62 lbs
- Diameter
- A. 0.00-3.18mm
- Thickness
- A. 0.00-3.18mm
D2H1 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/8" dia. x 1/10" thick, Axial magnetized. Pull force is approximately 0.62 lbs.
