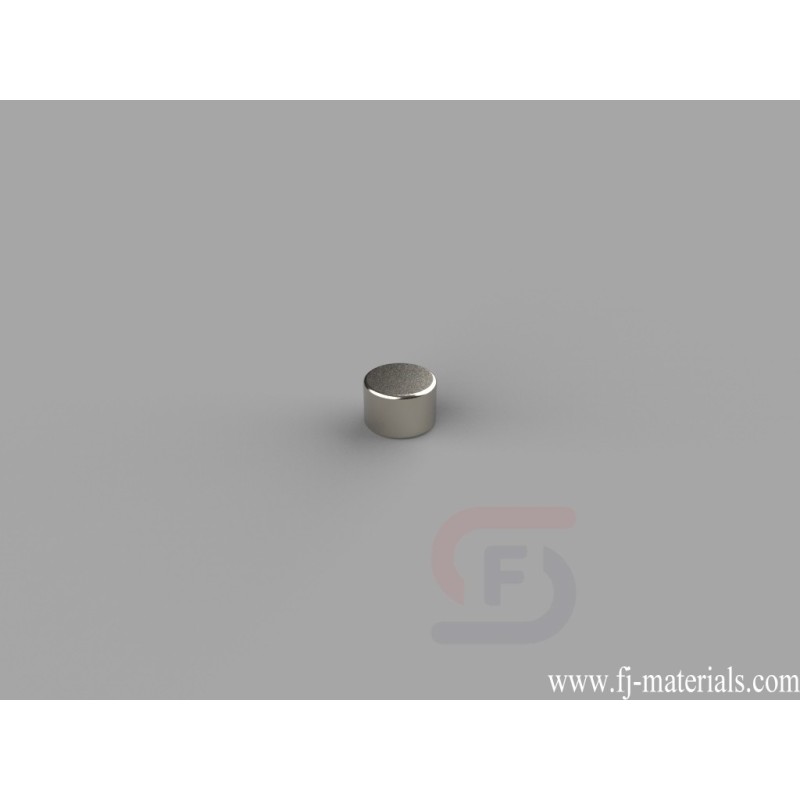

3/16 dia.x 1/8 inch thick Round Disc Magnets | D32

D32 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia.x 1/8" thick, Axial magnetized. Pull force is approximately 1.37 lbs.

Yiwu Fenjiao E-commerce Firm supply D32 Neodymium Disc Magnets with high quality at competitive price.

D32 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia.x 1/8" thick, Axial magnetized. Pull force is approximately 1.37 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D32

Data sheet

Item Number
D32
Material
NdFeB
Grade
N42
Size
3/16" dia.x 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.0150 oz. (0.424 g)
Pull Force
1.37 lbs
Diameter
B. 3.18-6.35mm
Thickness
A. 0.00-3.18mm
