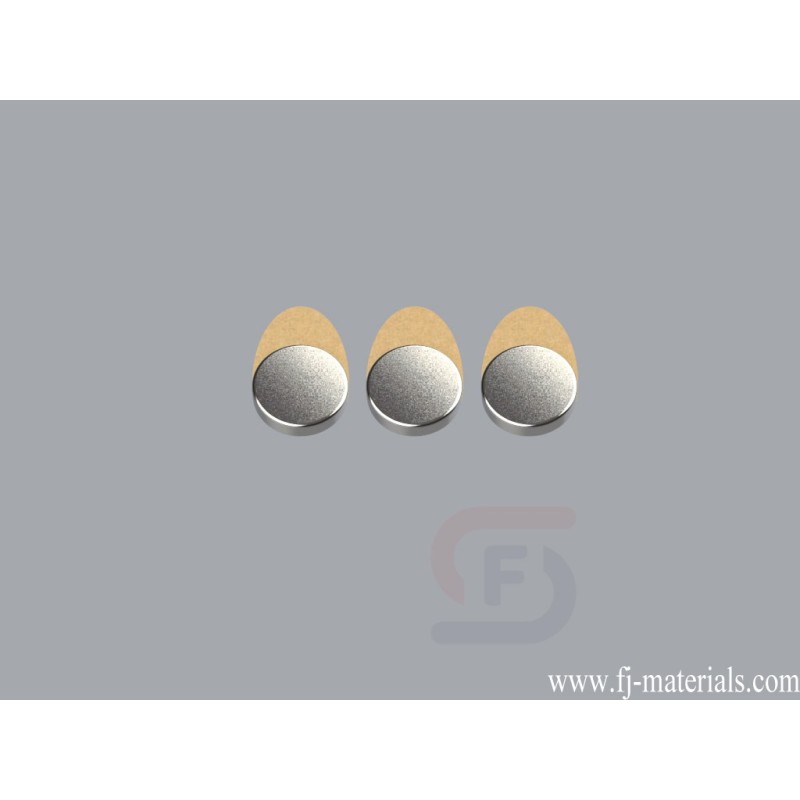

1/4 dia. x 1/16 inch thick with adhesive backing Round Disc Magnets | D41AD-P
D41AD-P Neodymium Magnets, 1/4" dia. x 1/16" thick with adhesive backing is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/16" thick with adhesive backing, Axial magnetized. Pull force is approximately 1.19 lbs.
D41AD-P Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1/4" dia. x 1/16" thick with adhesive backing, Ni-Cu-Ni (nickel) coating. Pull force: 1.19 lbs. Magnetization direction: Axial (Poles on Flat Ends)
D41AD-P Neodymium Magnets, 1/4" dia. x 1/16" thick with adhesive backing is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/16" thick with adhesive backing, Axial magnetized. Pull force is approximately 1.19 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D41AD-P
Data sheet
- Item Number
- D41AD-P
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" dia. x 1/16" thick with adhesive backing
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0133 oz. (0.377 g)
- Pull Force
- 1.19 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
D41AD-P Neodymium Magnets, 1/4" dia. x 1/16" thick with adhesive backing is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/16" thick with adhesive backing, Axial magnetized. Pull force is approximately 1.19 lbs.
