1/4 dia. x 1/16 inch thick Round Disc Magnets | D41SH

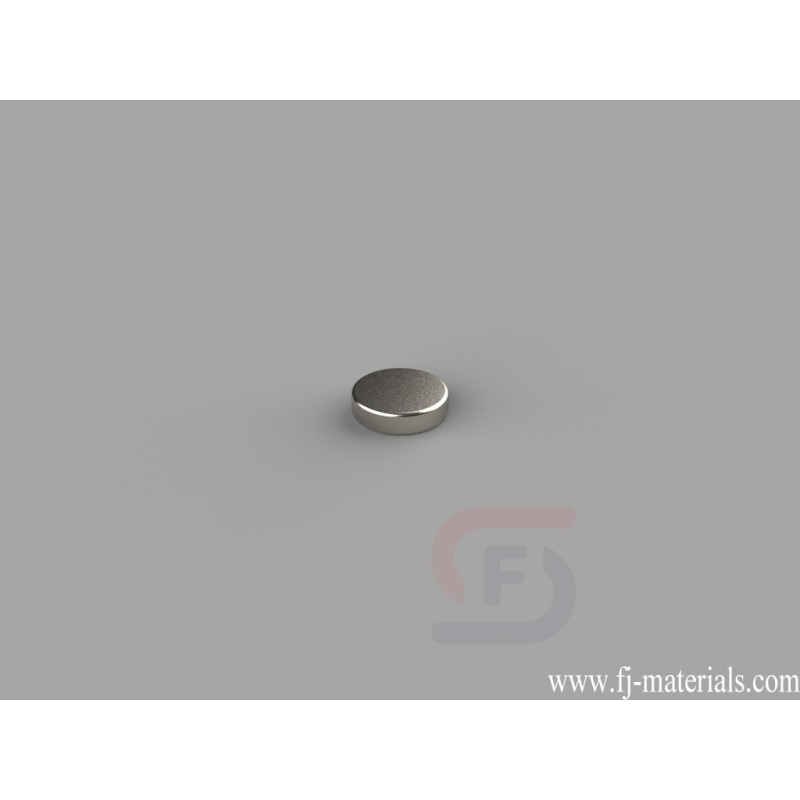

D41SH Neodymium Disc Magnets is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 1.19 lbs.
Yiwu Fenjiao E-commerce Firm supply D41SH Neodymium Disc Magnets with high quality at competitive price.
D41SH Neodymium Disc Magnets is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 1.19 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D41SH
Data sheet
- Item Number
- D41SH
- Material
- NdFeB
- Grade
- N42SH
- Size
- 1/4" dia. x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0133 oz. (0.377 g)
- Pull Force
- 1.19 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
D41SH Neodymium Disc Magnets is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 1.19 lbs.
