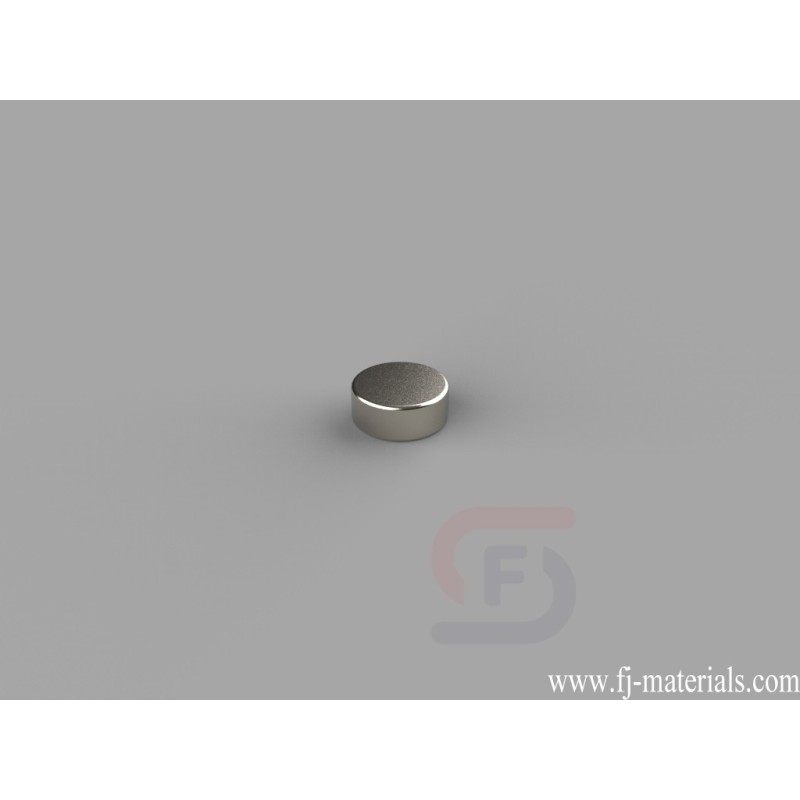

1/4 dia. x 1/10 inch thick Round Disc Magnets | D4H1

D4H1 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/10" thick, Axial magnetized. Pull force is approximately 1.76 lbs.

Yiwu Fenjiao E-commerce Firm supply D4H1 Neodymium Disc Magnets with high quality at competitive price.

D4H1 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 1/10" thick, Axial magnetized. Pull force is approximately 1.76 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D4H1

Data sheet

Item Number
D4H1
Material
NdFeB
Grade
N42
Size
1/4" dia. x 1/10" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.0213 oz. (0.603 g)
Pull Force
1.76 lbs
Diameter
B. 3.18-6.35mm
Thickness
A. 0.00-3.18mm
