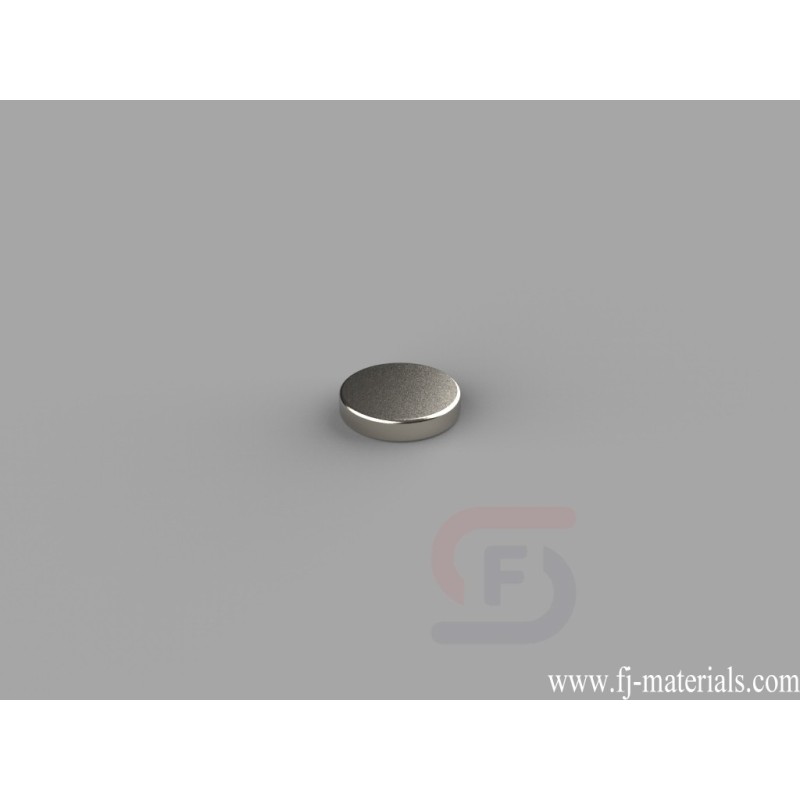

5/16 dia. x 1/16 inch thick Round Disc Magnets | D51-N52
D51-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 2.05 lbs.
Yiwu Fenjiao E-commerce Firm supply D51-N52 Neodymium Disc Magnets with high quality at competitive price.
D51-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 2.05 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D51-N52
Data sheet
- Item Number
- D51-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 5/16" dia. x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0208 oz. (0.589 g)
- Pull Force
- 2.05 lbs
- Diameter
- C. 6.35-9.53mm
- Thickness
- A. 0.00-3.18mm
D51-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 2.05 lbs.
