5/16 dia. x 1/4 inch thick Round Disc Magnets | D54

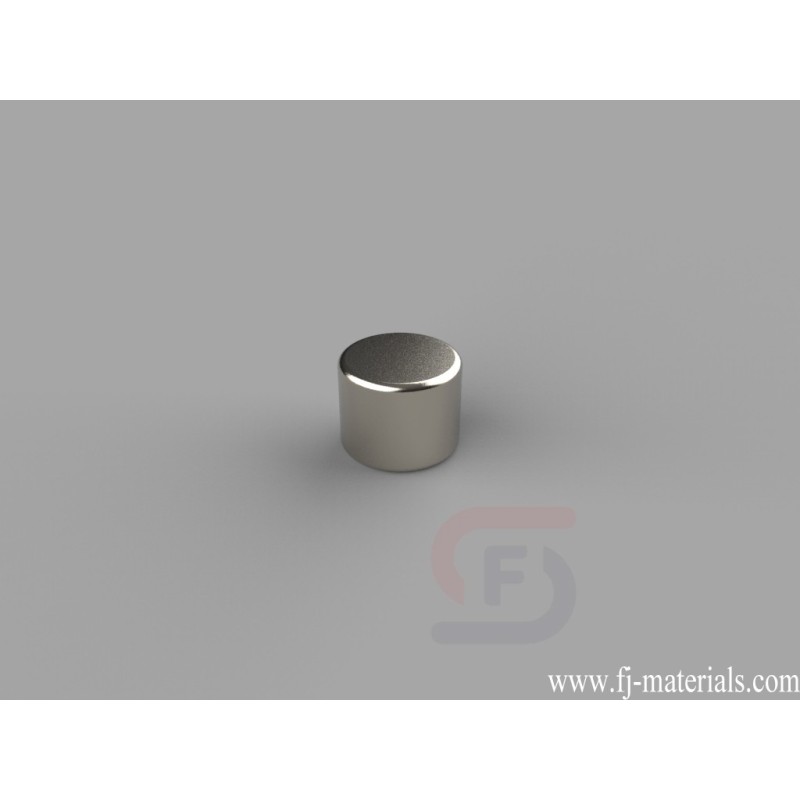

D54 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1/4" thick, Axial magnetized. Pull force is approximately 5.11 lbs.
Yiwu Fenjiao E-commerce Firm supply D54 Neodymium Disc Magnets with high quality at competitive price.
D54 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1/4" thick, Axial magnetized. Pull force is approximately 5.11 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D54
Data sheet
- Item Number
- D54
- Material
- NdFeB
- Grade
- N42
- Size
- 5/16" dia. x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0831 oz. (2.36 g)
- Pull Force
- 5.11 lbs
- Diameter
- C. 6.35-9.53mm
- Thickness
- B. 3.18-6.35mm
D54 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1/4" thick, Axial magnetized. Pull force is approximately 5.11 lbs.
