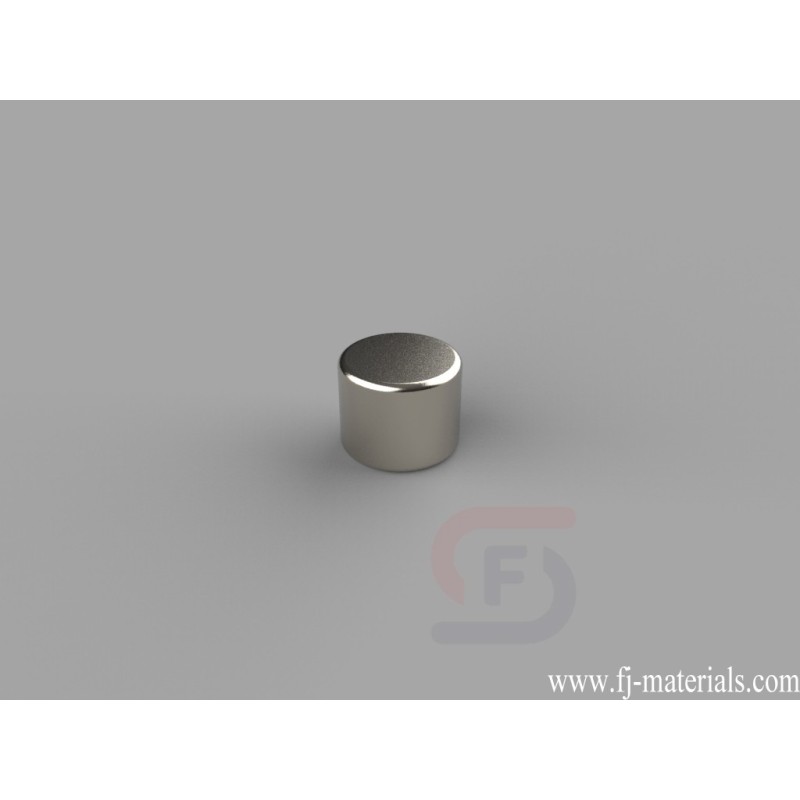

5/16 dia. x 1/4 inch thick Round Disc Magnets | D54-N52

D54-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1/4" thick, Axial magnetized. Pull force is approximately 6.32 lbs.

Yiwu Fenjiao E-commerce Firm supply D54-N52 Neodymium Disc Magnets with high quality at competitive price.

D54-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1/4" thick, Axial magnetized. Pull force is approximately 6.32 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D54-N52

Data sheet

Item Number
D54-N52
Material
NdFeB
Grade
N52
Size
5/16" dia. x 1/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.0831 oz. (2.36 g)
Pull Force
6.32 lbs
Diameter
C. 6.35-9.53mm
Thickness
B. 3.18-6.35mm
