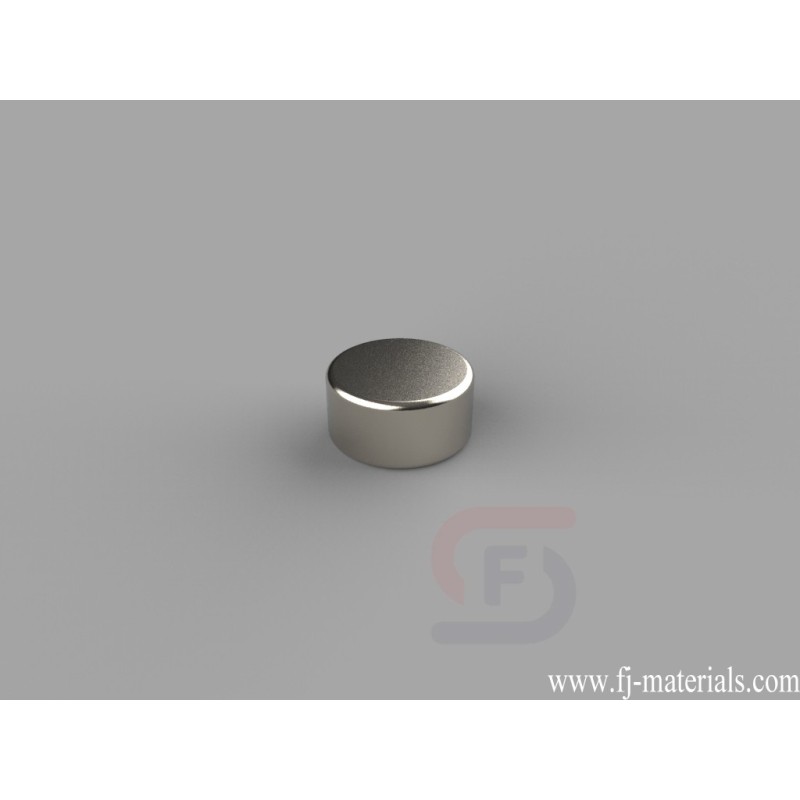

3/8 dia. x 3/16 inch thick Round Disc Magnets | D63

D63 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 5.81 lbs.

Yiwu Fenjiao E-commerce Firm supply D63 Neodymium Disc Magnets with high quality at competitive price.

D63 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 5.81 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D63

Data sheet

Item Number
D63
Material
NdFeB
Grade
N42
Size
3/8" dia. x 3/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.0898 oz. (2.55 g)
Pull Force
5.81 lbs
Diameter
C. 6.35-9.53mm
Thickness
B. 3.18-6.35mm
