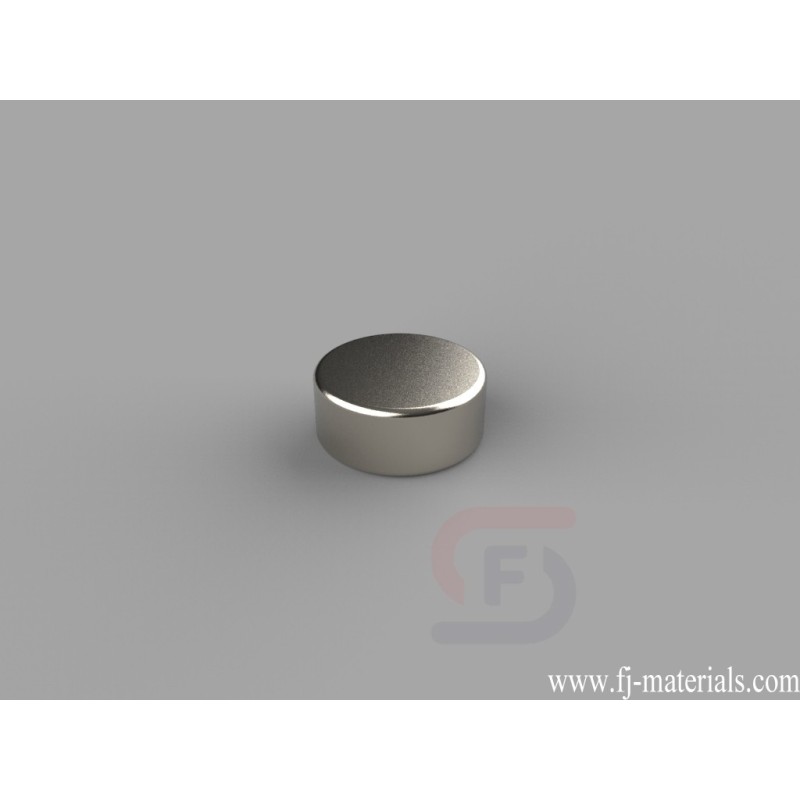

7/16 dia. x 3/16 inch thick Round Disc Magnets | D73
D73 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 7.48 lbs.
Yiwu Fenjiao E-commerce Firm supply D73 Neodymium Disc Magnets with high quality at competitive price.
D73 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 7.48 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D73
Data sheet
- Item Number
- D73
- Material
- NdFeB
- Grade
- N42
- Size
- 7/16" dia. x 3/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.122 oz. (3.46 g)
- Pull Force
- 7.48 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
D73 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 7.48 lbs.
