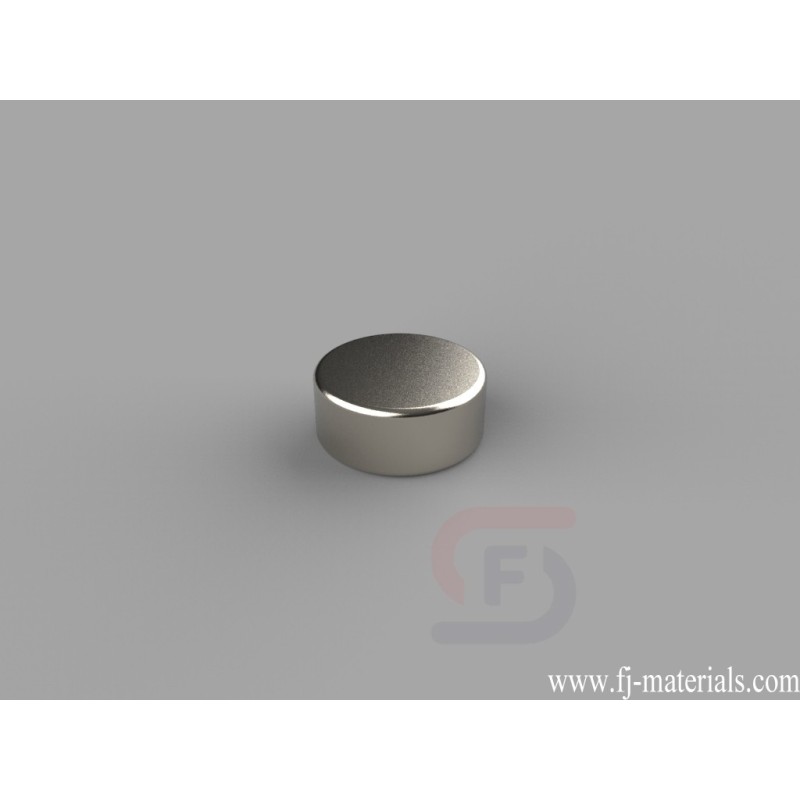

7/16 dia. x 3/16 inch thick Round Disc Magnets | D73-N52
D73-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 9.25 lbs.
Yiwu Fenjiao E-commerce Firm supply D73-N52 Neodymium Disc Magnets with high quality at competitive price.
D73-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 9.25 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D73-N52
Data sheet
- Item Number
- D73-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 7/16" dia. x 3/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.122 oz. (3.46 g)
- Pull Force
- 9.25 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
D73-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 9.25 lbs.
