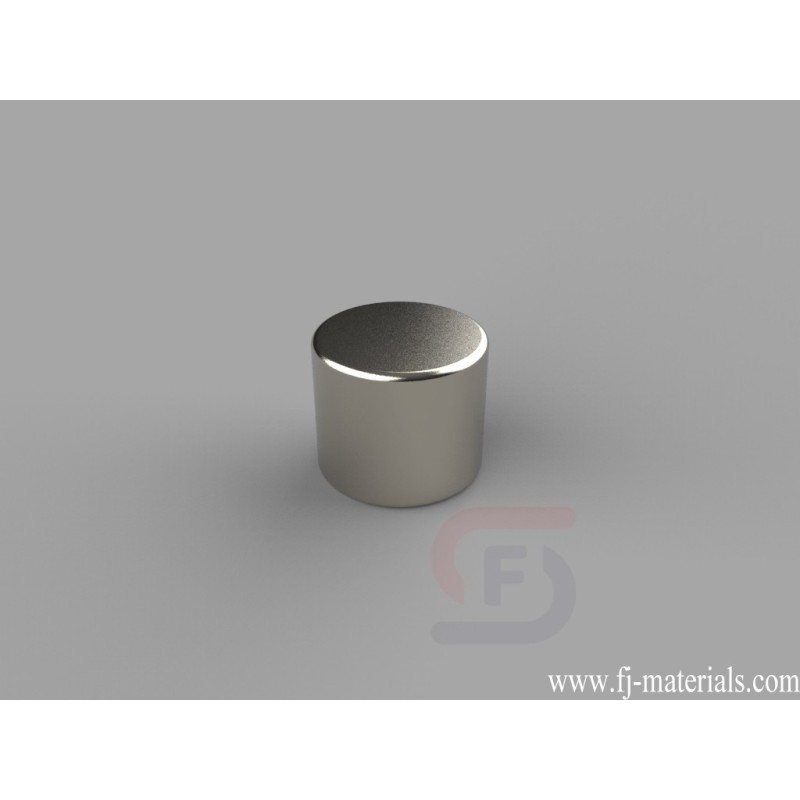

7/16 dia. x 3/8 inch thick Round Disc Magnets | D76

D76 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 10.70 lbs.

Yiwu Fenjiao E-commerce Firm supply D76 Neodymium Disc Magnets with high quality at competitive price.

D76 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 10.70 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D76

Data sheet

Item Number
D76
Material
NdFeB
Grade
N42
Size
7/16" dia. x 3/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.244 oz. (6.93 g)
Pull Force
10.70 lbs
Diameter
D. 9.53-12.7mm
Thickness
C. 6.35-9.53mm
