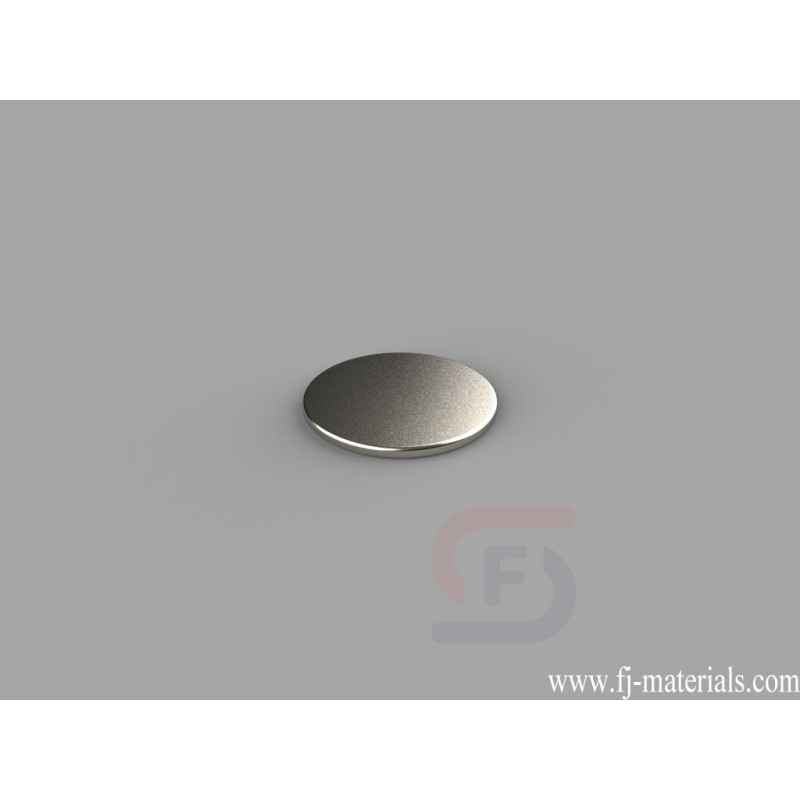

1/2 dia. x 1/32 inch thick Round Disc Magnets | D801

D801 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 1.15 lbs.

Yiwu Fenjiao E-commerce Firm supply D801 Neodymium Disc Magnets with high quality at competitive price.

D801 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 1.15 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D801

Data sheet

Item Number
D801
Material
NdFeB
Grade
N42
Size
1/2" dia. x 1/32" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.0266 oz. (0.754 g)
Pull Force
1.15 lbs
Diameter
D. 9.53-12.7mm
Thickness
A. 0.00-3.18mm
