1/2 dia. x 3/32 inch thick Round Disc Magnets | D803

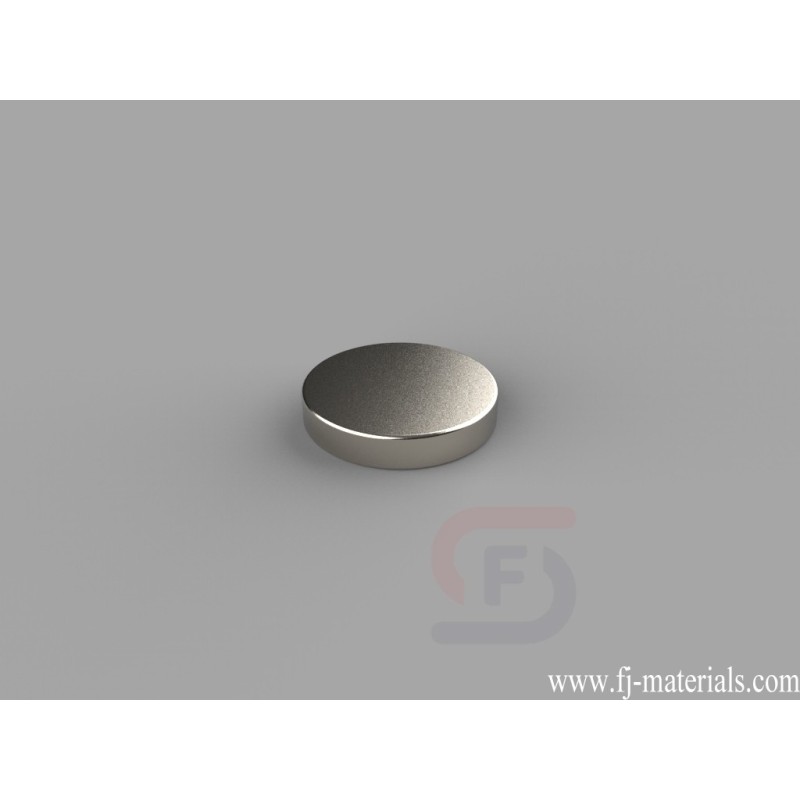

D803 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 4.16 lbs.
Yiwu Fenjiao E-commerce Firm supply D803 Neodymium Disc Magnets with high quality at competitive price.
D803 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 4.16 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D803
Data sheet
- Item Number
- D803
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" dia. x 3/32" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0798 oz. (2.26 g)
- Pull Force
- 4.16 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- A. 0.00-3.18mm
D803 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 4.16 lbs.
