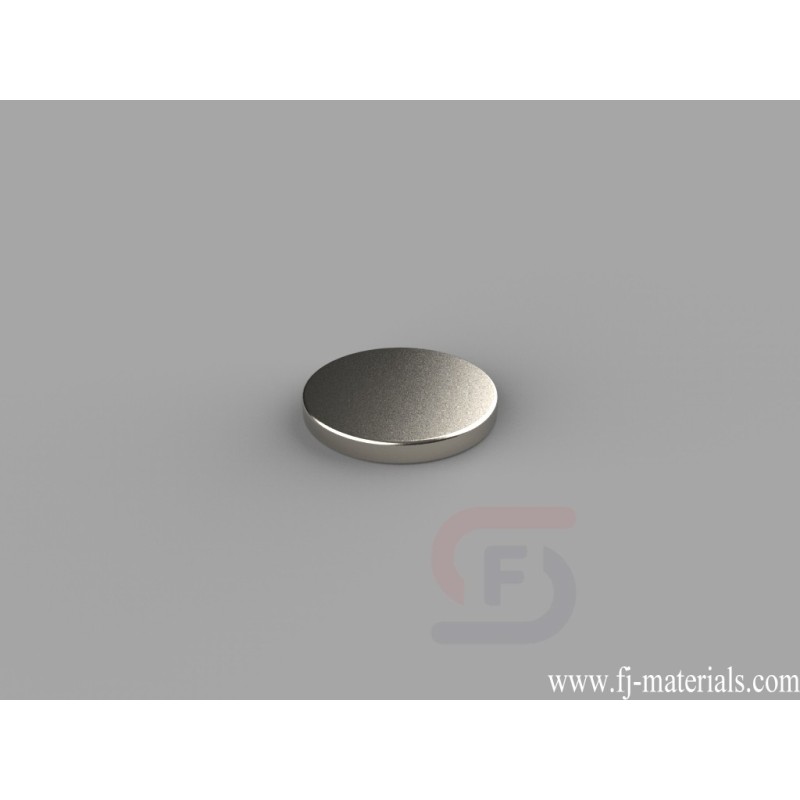

1/2 dia. x 1/16 inch thick Round Disc Magnets | D81-N52
D81-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 3.84 lbs.
Yiwu Fenjiao E-commerce Firm supply D81-N52 Neodymium Disc Magnets with high quality at competitive price.
D81-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 3.84 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D81-N52
Data sheet
- Item Number
- D81-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 1/2" dia. x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0532 oz. (1.51 g)
- Pull Force
- 3.84 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- A. 0.00-3.18mm
D81-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 3.84 lbs.
