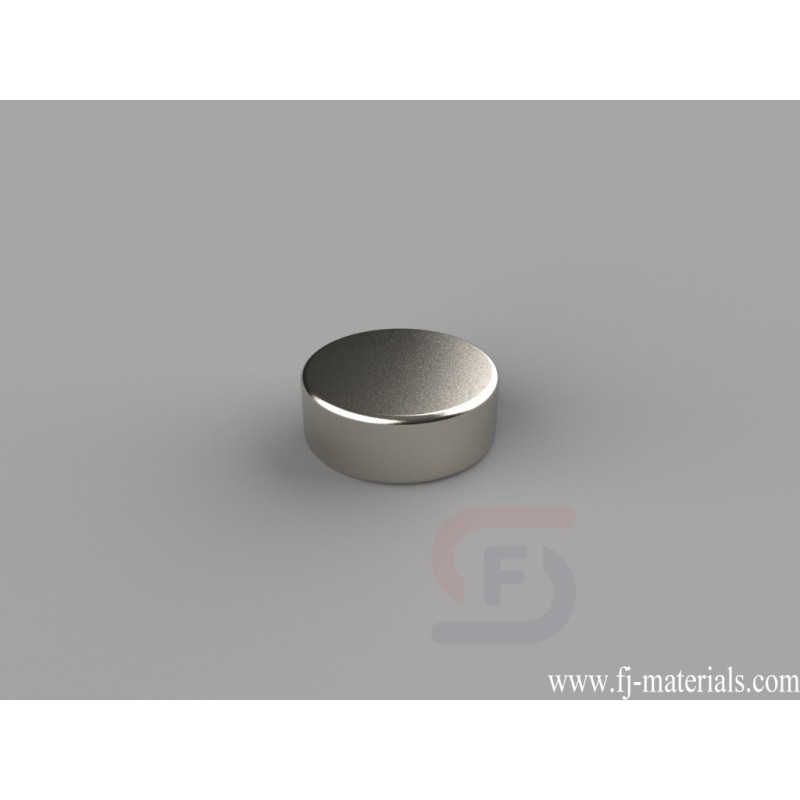

1/2 dia. x 3/16 inch thick Round Disc Magnets | D83-N52

D83-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 11.32 lbs.

Yiwu Fenjiao E-commerce Firm supply D83-N52 Neodymium Disc Magnets with high quality at competitive price.

D83-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 11.32 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D83-N52

Data sheet

Item Number
D83-N52
Material
NdFeB
Grade
N52
Size
1/2" dia. x 3/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.160 oz. (4.53 g)
Pull Force
11.32 lbs
Diameter
D. 9.53-12.7mm
Thickness
B. 3.18-6.35mm
