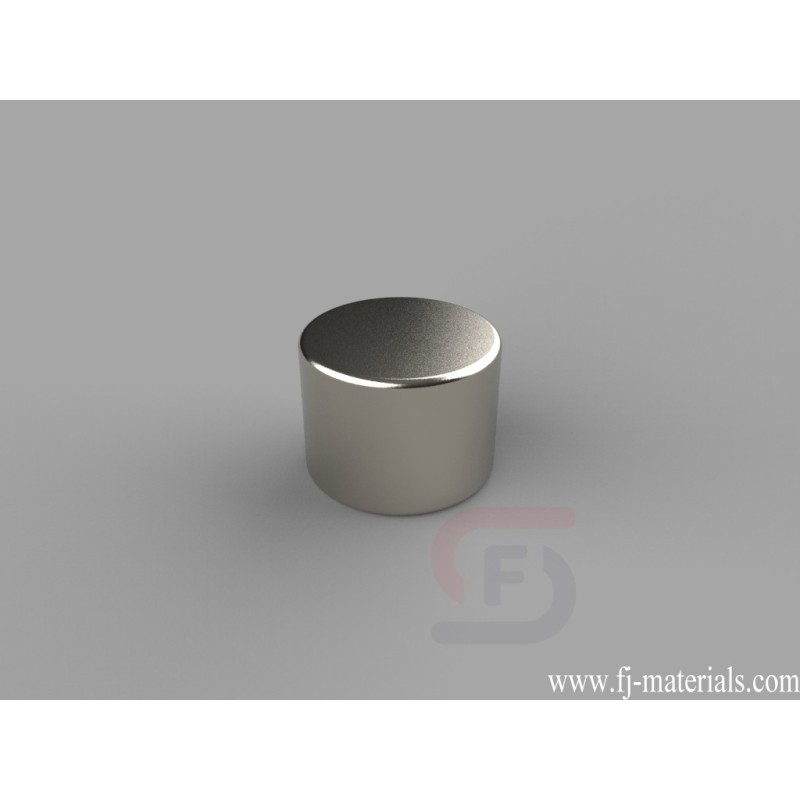

1/2 dia. x 3/8 inch thick Round Disc Magnets | D86
D86 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 13.43 lbs.
Yiwu Fenjiao E-commerce Firm supply D86 Neodymium Disc Magnets with high quality at competitive price.
D86 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 13.43 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D86
Data sheet
- Item Number
- D86
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" dia. x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.319 oz. (9.05 g)
- Pull Force
- 13.43 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- C. 6.35-9.53mm
D86 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 3/8" thick, Axial magnetized. Pull force is approximately 13.43 lbs.
