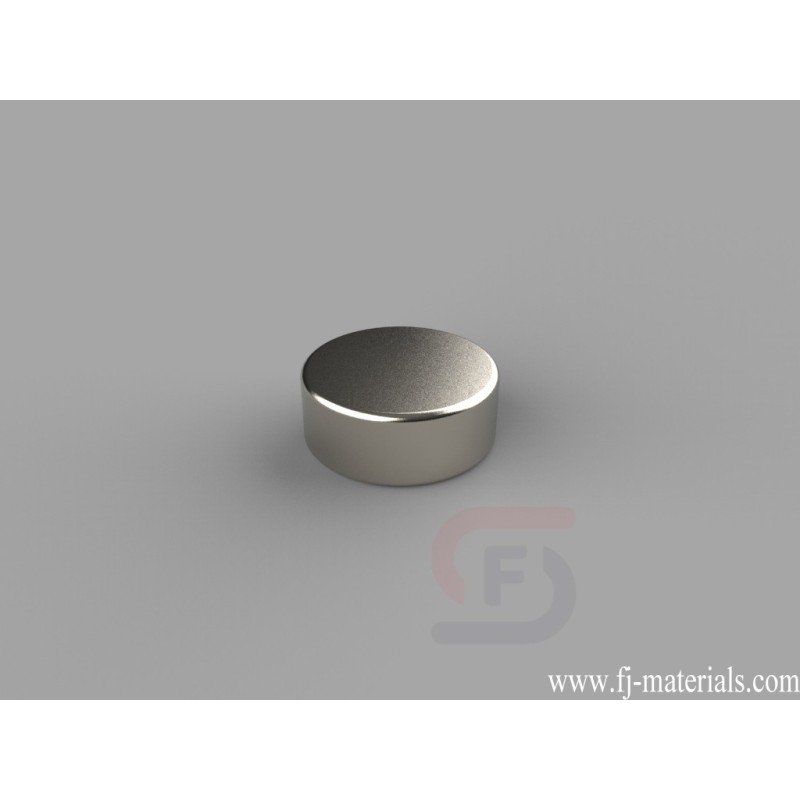

1/2 dia. x 2/10 inch thick Round Disc Magnets | D8H2
D8H2 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 2/10" thick, Axial magnetized. Pull force is approximately 9.49 lbs.
Yiwu Fenjiao E-commerce Firm supply D8H2 Neodymium Disc Magnets with high quality at competitive price.
D8H2 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 2/10" thick, Axial magnetized. Pull force is approximately 9.49 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8H2
Data sheet
- Item Number
- D8H2
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" dia. x 2/10" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.170 oz. (4.83 g)
- Pull Force
- 9.49 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
D8H2 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 2/10" thick, Axial magnetized. Pull force is approximately 9.49 lbs.
