5/8 dia. x 1/32 inch thick Round Disc Magnets | DA01

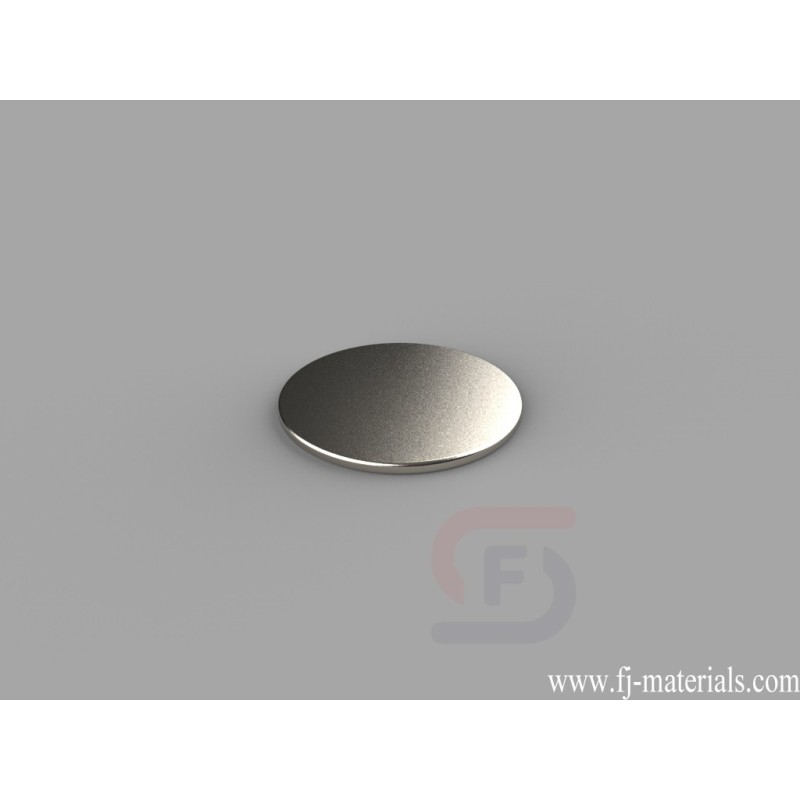

DA01 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 1.47 lbs.

Yiwu Fenjiao E-commerce Firm supply DA01 Neodymium Disc Magnets with high quality at competitive price.

DA01 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 1.47 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DA01

Data sheet

Item Number
DA01
Material
NdFeB
Grade
N42
Size
5/8" dia. x 1/32" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.0416 oz. (1.18 g)
Pull Force
1.47 lbs
Diameter
E. 12.7-19.05mm
Thickness
A. 0.00-3.18mm
