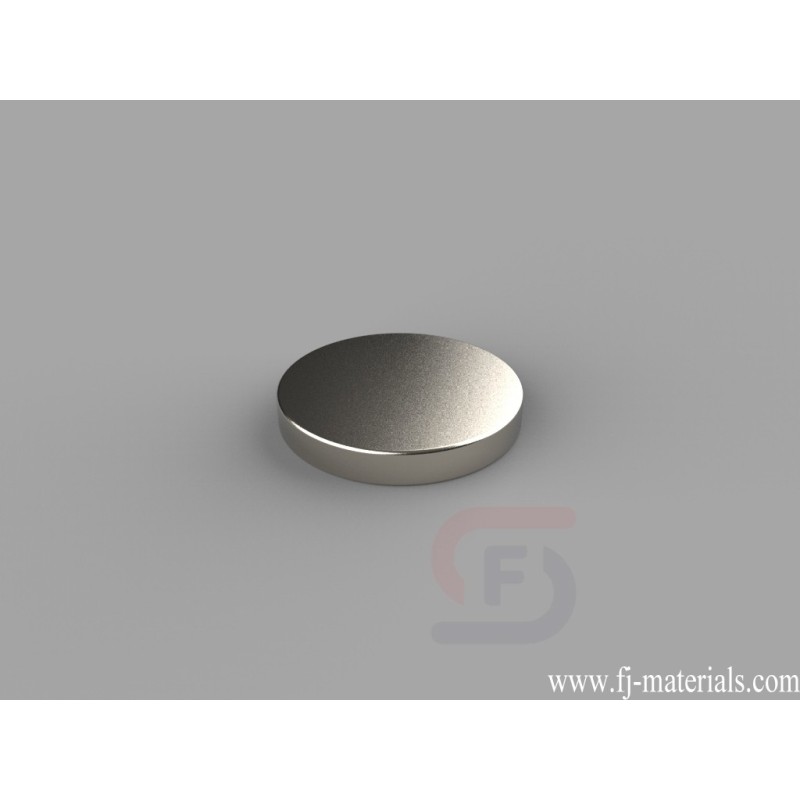

5/8 dia. x 3/32 inch thick Round Disc Magnets | DA03
DA03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 5.61 lbs.
Yiwu Fenjiao E-commerce Firm supply DA03 Neodymium Disc Magnets with high quality at competitive price.
DA03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 5.61 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DA03
Data sheet
- Item Number
- DA03
- Material
- NdFeB
- Grade
- N42
- Size
- 5/8" dia. x 3/32" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.125 oz. (3.54 g)
- Pull Force
- 5.61 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
DA03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 5.61 lbs.
