5/8 dia. x 1/8 inch thick Round Disc Magnets | DA2SH

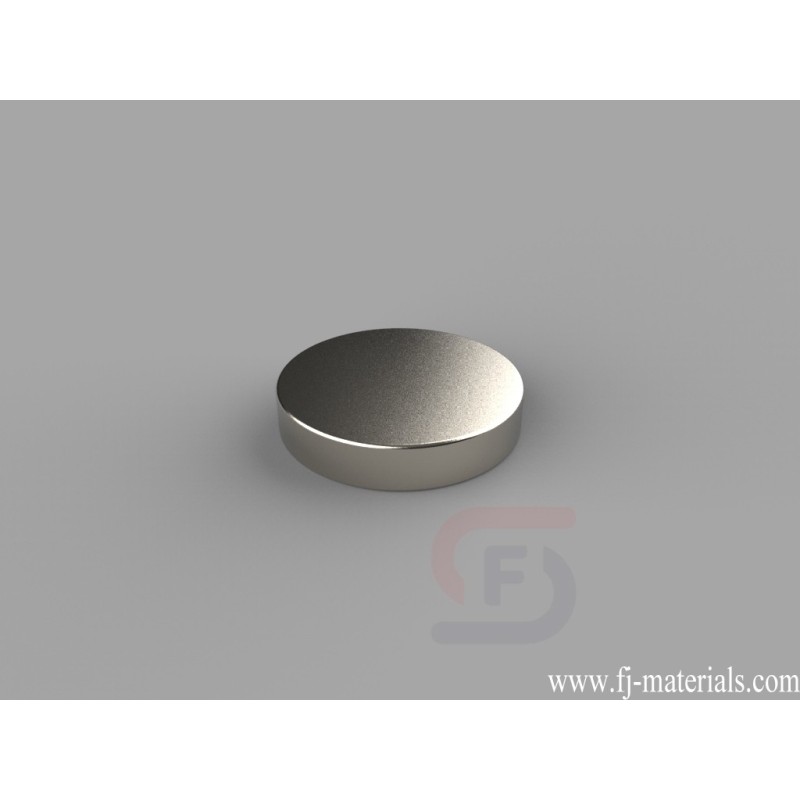

DA2SH Neodymium Disc Magnets is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 5/8" dia. x 1/8" thick, Axial magnetized. Pull force is approximately 8.20 lbs.
Yiwu Fenjiao E-commerce Firm supply DA2SH Neodymium Disc Magnets with high quality at competitive price.
DA2SH Neodymium Disc Magnets is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 5/8" dia. x 1/8" thick, Axial magnetized. Pull force is approximately 8.20 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DA2SH
Data sheet
- Item Number
- DA2SH
- Material
- NdFeB
- Grade
- N42SH
- Size
- 5/8" dia. x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.166 oz. (4.71 g)
- Pull Force
- 8.20 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
DA2SH Neodymium Disc Magnets is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 5/8" dia. x 1/8" thick, Axial magnetized. Pull force is approximately 8.20 lbs.
