5/8 dia. x 3/16 inch thick Round Disc Magnets | DA3

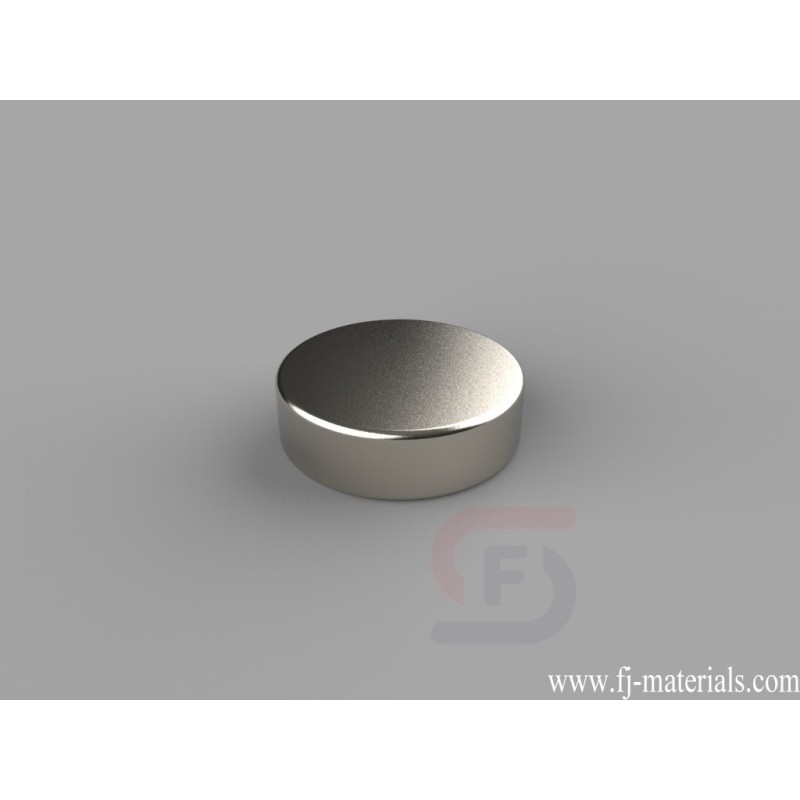

DA3 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 12.74 lbs.
Yiwu Fenjiao E-commerce Firm supply DA3 Neodymium Disc Magnets with high quality at competitive price.
DA3 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 12.74 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DA3
Data sheet
- Item Number
- DA3
- Material
- NdFeB
- Grade
- N42
- Size
- 5/8" dia. x 3/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.245 oz. (7.07 g)
- Pull Force
- 12.74 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- B. 3.18-6.35mm
DA3 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3/16" thick, Axial magnetized. Pull force is approximately 12.74 lbs.
