11/16 dia. x 1/32 inch thick Round Disc Magnets | DB01

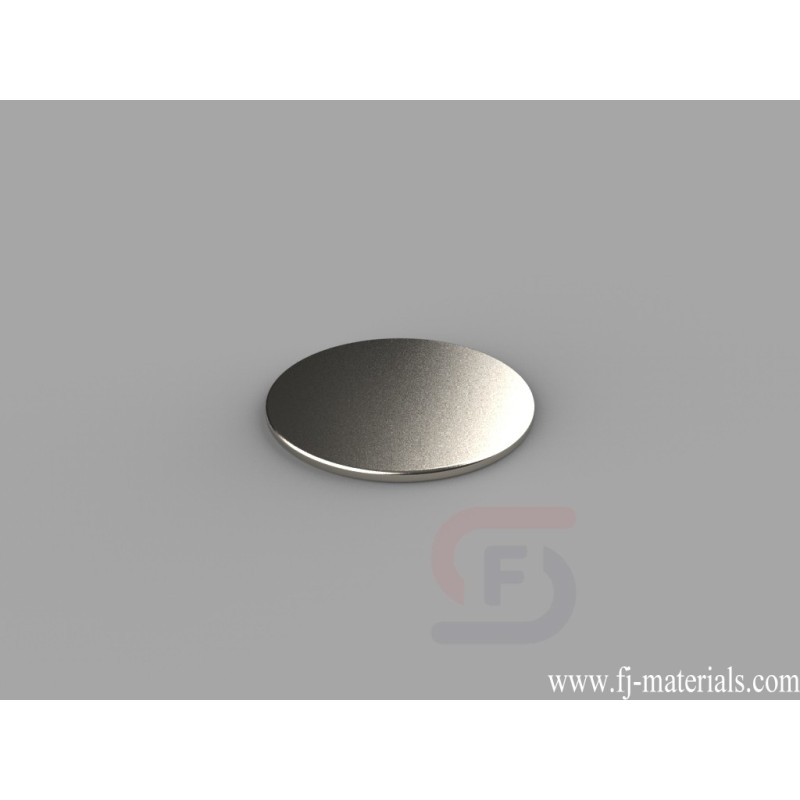

DB01 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 1.63 lbs.
Yiwu Fenjiao E-commerce Firm supply DB01 Neodymium Disc Magnets with high quality at competitive price.
DB01 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 1.63 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DB01
Data sheet
- Item Number
- DB01
- Material
- NdFeB
- Grade
- N42
- Size
- 11/16" dia. x 1/32" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0503 oz. (1.42 g)
- Pull Force
- 1.63 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
DB01 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 1.63 lbs.
