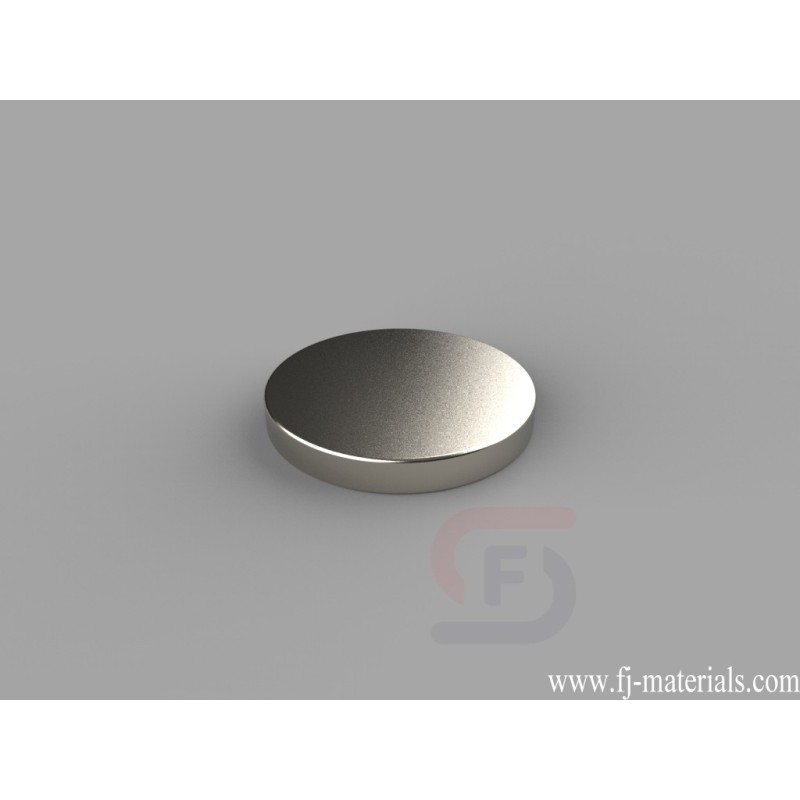

11/16 dia. x 3/32 inch thick Round Disc Magnets | DB03
DB03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 6.31 lbs.
Yiwu Fenjiao E-commerce Firm supply DB03 Neodymium Disc Magnets with high quality at competitive price.
DB03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 6.31 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DB03
Data sheet
- Item Number
- DB03
- Material
- NdFeB
- Grade
- N42
- Size
- 11/16" dia. x 3/32" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.151 oz. (4.28 g)
- Pull Force
- 6.31 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
DB03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 6.31 lbs.
