11/16 dia. x 1/2 inch thick Round Disc Magnets | DB8

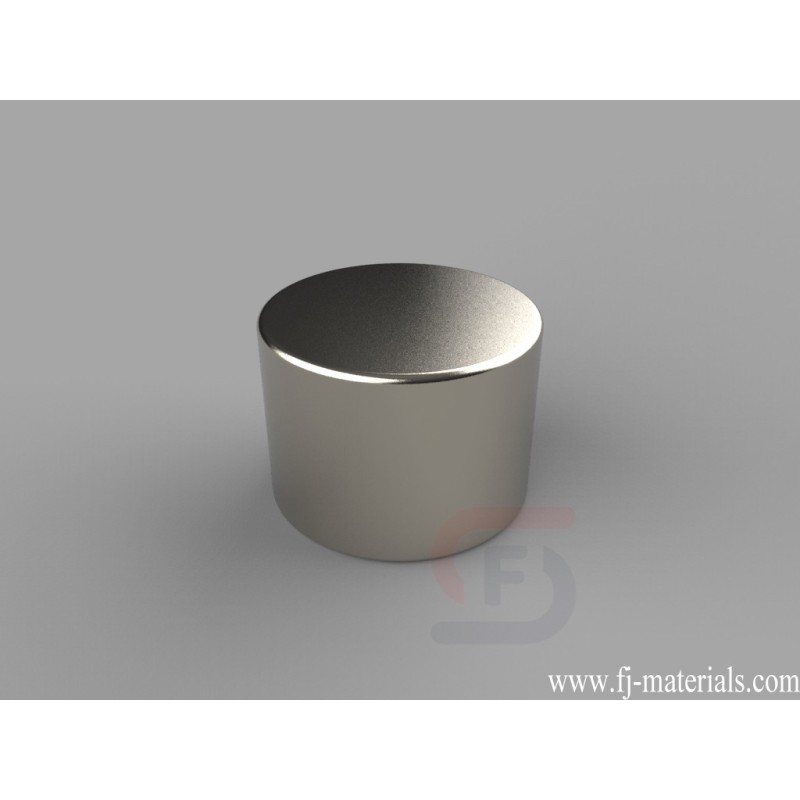

DB8 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 25.10 lbs.

Yiwu Fenjiao E-commerce Firm supply DB8 Neodymium Disc Magnets with high quality at competitive price.

DB8 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 25.10 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DB8

Data sheet

Item Number
DB8
Material
NdFeB
Grade
N42
Size
11/16" dia. x 1/2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.805 oz. (22.8 g)
Pull Force
25.10 lbs
Diameter
E. 12.7-19.05mm
Thickness
D. 9.53-12.7mm
