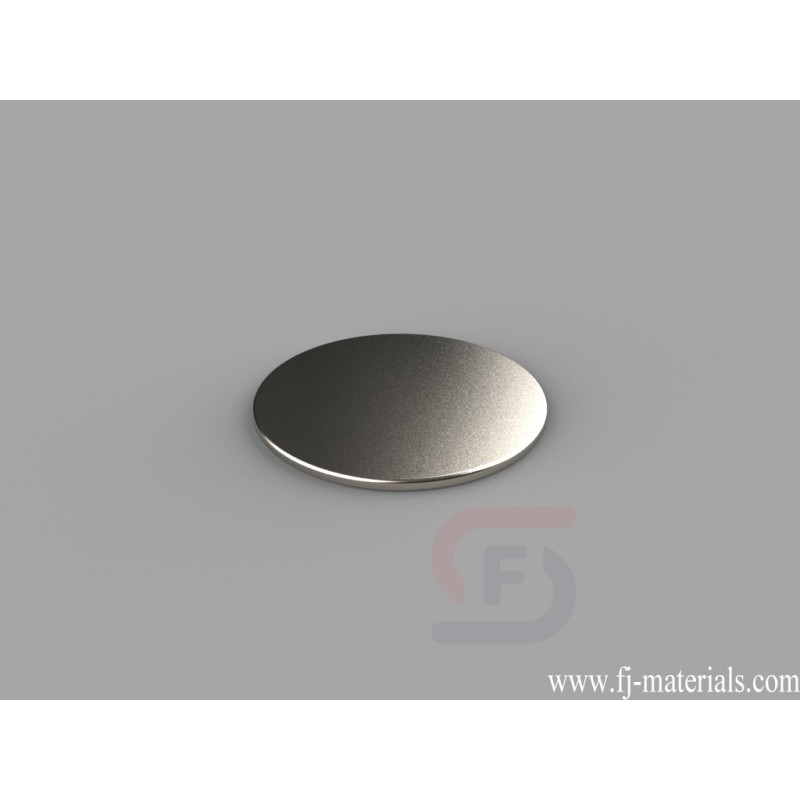

3/4 dia. x 1/32 inch thick Round Disc Magnets | DC01-N52
DC01-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 2.20 lbs.
Yiwu Fenjiao E-commerce Firm supply DC01-N52 Neodymium Disc Magnets with high quality at competitive price.
DC01-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 2.20 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DC01-N52
Data sheet
- Item Number
- DC01-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 3/4" dia. x 1/32" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0599 oz. (1.70 g)
- Pull Force
- 2.20 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
DC01-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 1/32" thick, Axial magnetized. Pull force is approximately 2.20 lbs.
