3/4 dia.x 1/8 inch thick Round Disc Magnets | DC2E

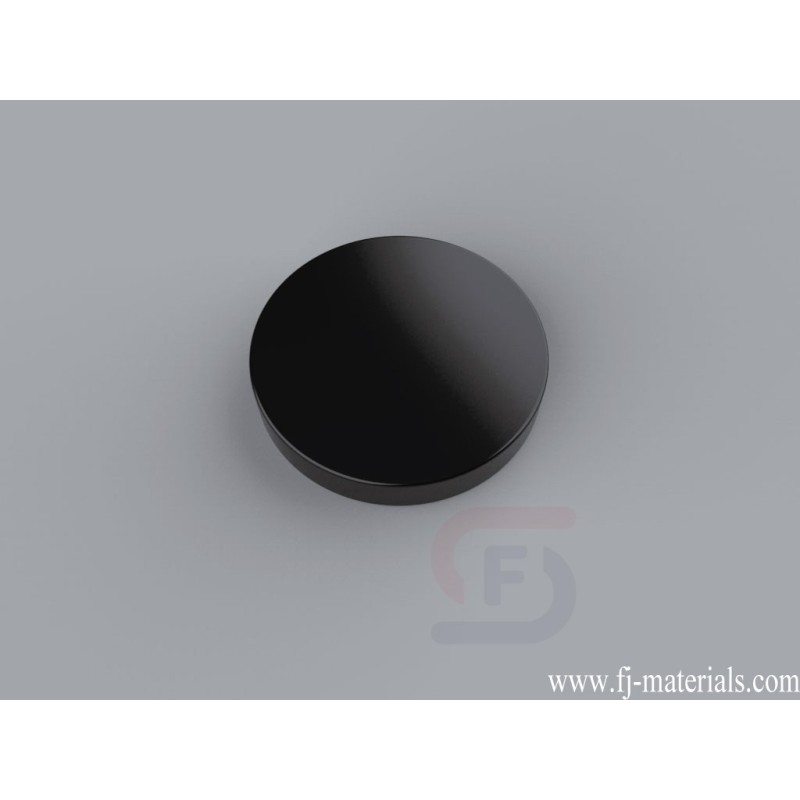

DC2E Neodymium Disc Magnets is made of Grade N42 NdFeB, Black Epoxy. The dimension is 3/4" dia.x 1/8" thick, Axial magnetized. Pull force is approximately 9.76 lbs.
Yiwu Fenjiao E-commerce Firm supply DC2E Neodymium Disc Magnets with high quality at competitive price.
DC2E Neodymium Disc Magnets is made of Grade N42 NdFeB, Black Epoxy. The dimension is 3/4" dia.x 1/8" thick, Axial magnetized. Pull force is approximately 9.76 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DC2E
Data sheet
- Item Number
- DC2E
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" dia.x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Black Epoxy
- Magnetization Direction
- Axial
- Weight
- 0.239 oz. (6.79 g)
- Pull Force
- 9.76 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
DC2E Neodymium Disc Magnets is made of Grade N42 NdFeB, Black Epoxy. The dimension is 3/4" dia.x 1/8" thick, Axial magnetized. Pull force is approximately 9.76 lbs.
