3/4 dia.x 3/16 inch thick Round Disc Magnets | DC3

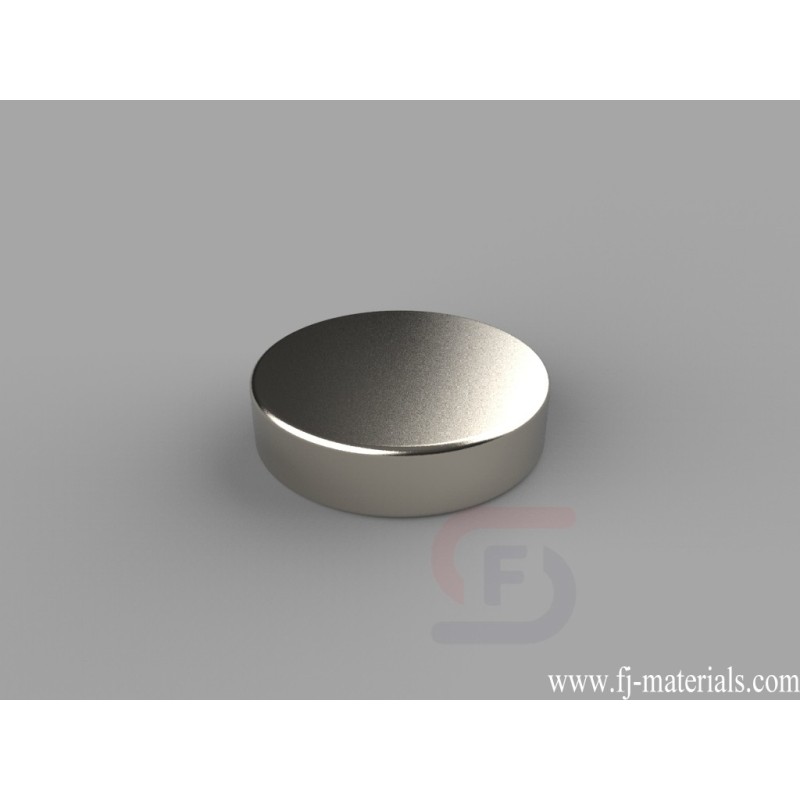

DC3 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia.x 3/16" thick, Axial magnetized. Pull force is approximately 15.50 lbs.
Yiwu Fenjiao E-commerce Firm supply DC3 Neodymium Disc Magnets with high quality at competitive price.
DC3 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia.x 3/16" thick, Axial magnetized. Pull force is approximately 15.50 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DC3
Data sheet
- Item Number
- DC3
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" dia.x 3/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.359 oz. (10.2 g)
- Pull Force
- 15.50 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- B. 3.18-6.35mm
DC3 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia.x 3/16" thick, Axial magnetized. Pull force is approximately 15.50 lbs.
