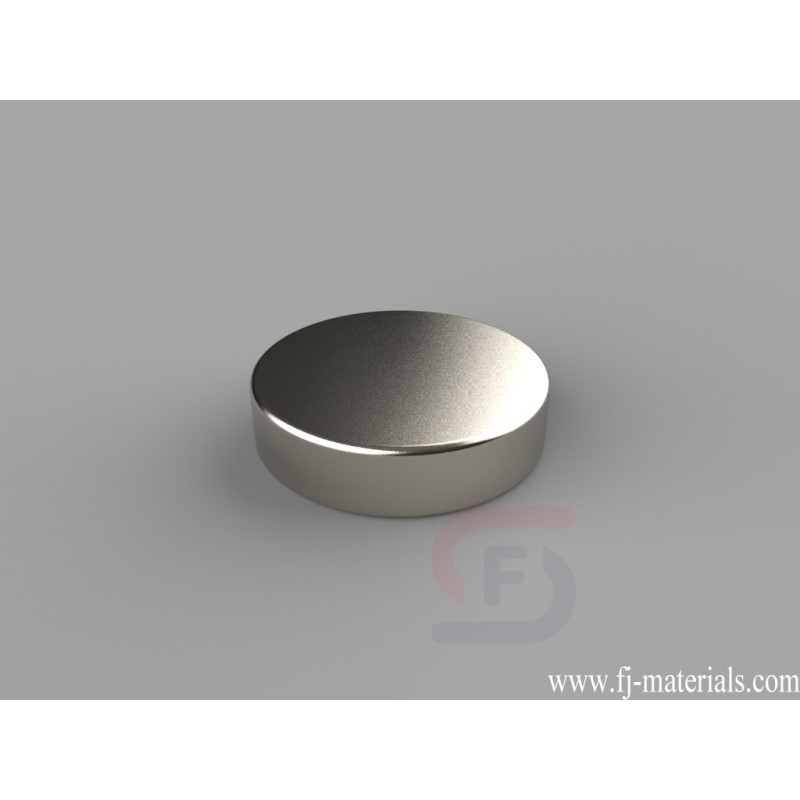

3/4 dia.x 3/16 inch thick Round Disc Magnets | DC3-N52

DC3-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/4" dia.x 3/16" thick, Axial magnetized. Pull force is approximately 19.19 lbs.

Yiwu Fenjiao E-commerce Firm supply DC3-N52 Neodymium Disc Magnets with high quality at competitive price.

DC3-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3/4" dia.x 3/16" thick, Axial magnetized. Pull force is approximately 19.19 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DC3-N52

Data sheet

Item Number
DC3-N52
Material
NdFeB
Grade
N52
Size
3/4" dia.x 3/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.359 oz. (10.2 g)
Pull Force
19.19 lbs
Diameter
E. 12.7-19.05mm
Thickness
B. 3.18-6.35mm
