13/16 dia. x 3/32 inch thick Round Disc Magnets | DD03

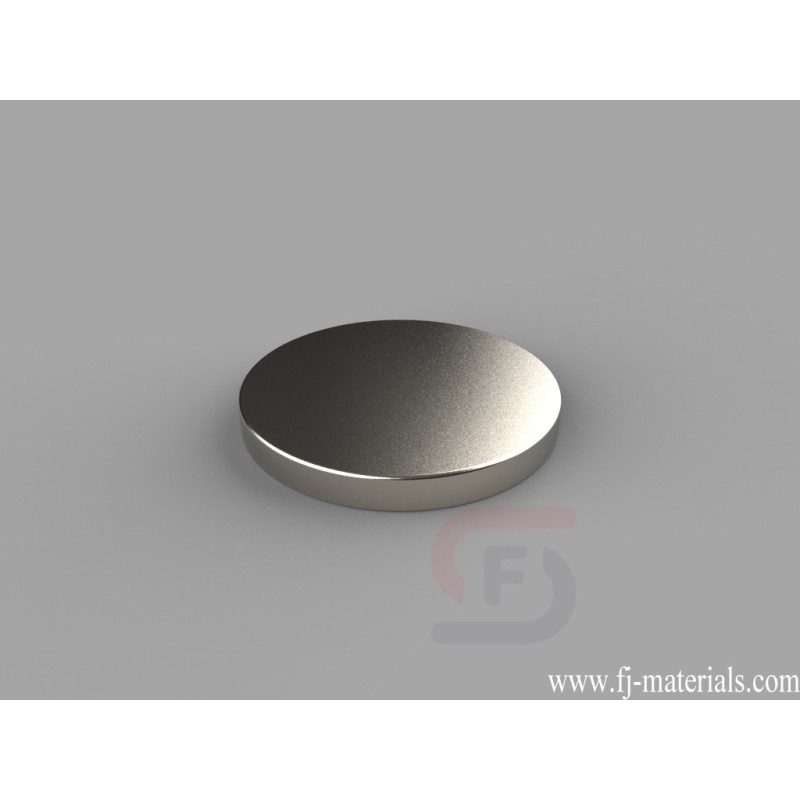

DD03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 7.36 lbs.
Yiwu Fenjiao E-commerce Firm supply DD03 Neodymium Disc Magnets with high quality at competitive price.
DD03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 7.36 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DD03
Data sheet
- Item Number
- DD03
- Material
- NdFeB
- Grade
- N42
- Size
- 13/16" dia. x 3/32" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.211 oz. (5.98 g)
- Pull Force
- 7.36 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
DD03 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 3/32" thick, Axial magnetized. Pull force is approximately 7.36 lbs.
