13/16 dia.x 1/4 inch thick Round Disc Magnets | DD4

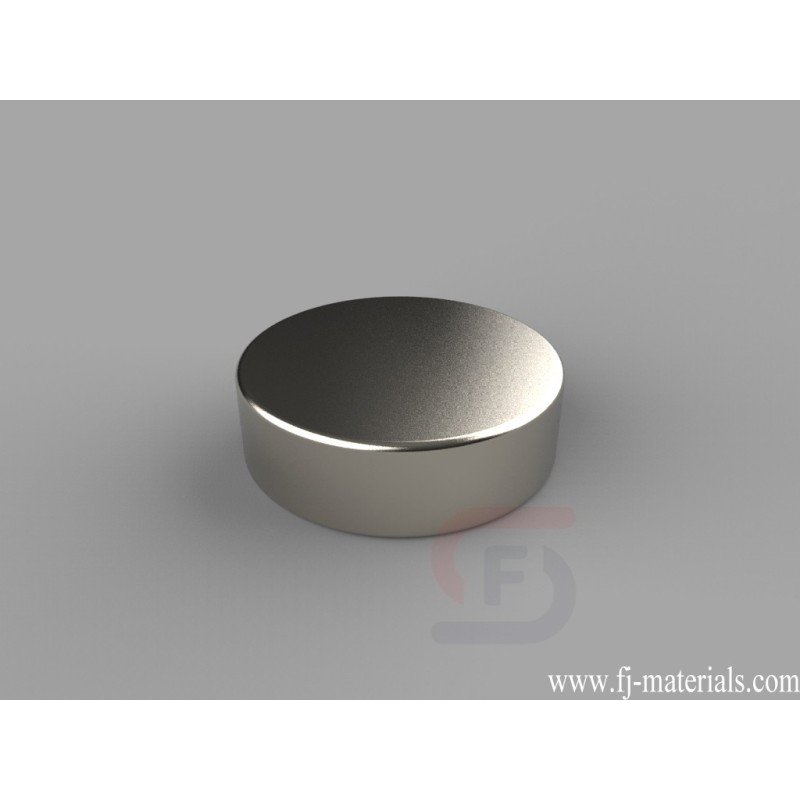

DD4 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia.x 1/4" thick, Axial magnetized. Pull force is approximately 20.86 lbs.
Yiwu Fenjiao E-commerce Firm supply DD4 Neodymium Disc Magnets with high quality at competitive price.
DD4 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia.x 1/4" thick, Axial magnetized. Pull force is approximately 20.86 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DD4
Data sheet
- Item Number
- DD4
- Material
- NdFeB
- Grade
- N42
- Size
- 13/16" dia.x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.562 oz. (15.9 g)
- Pull Force
- 20.86 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- B. 3.18-6.35mm
DD4 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia.x 1/4" thick, Axial magnetized. Pull force is approximately 20.86 lbs.
