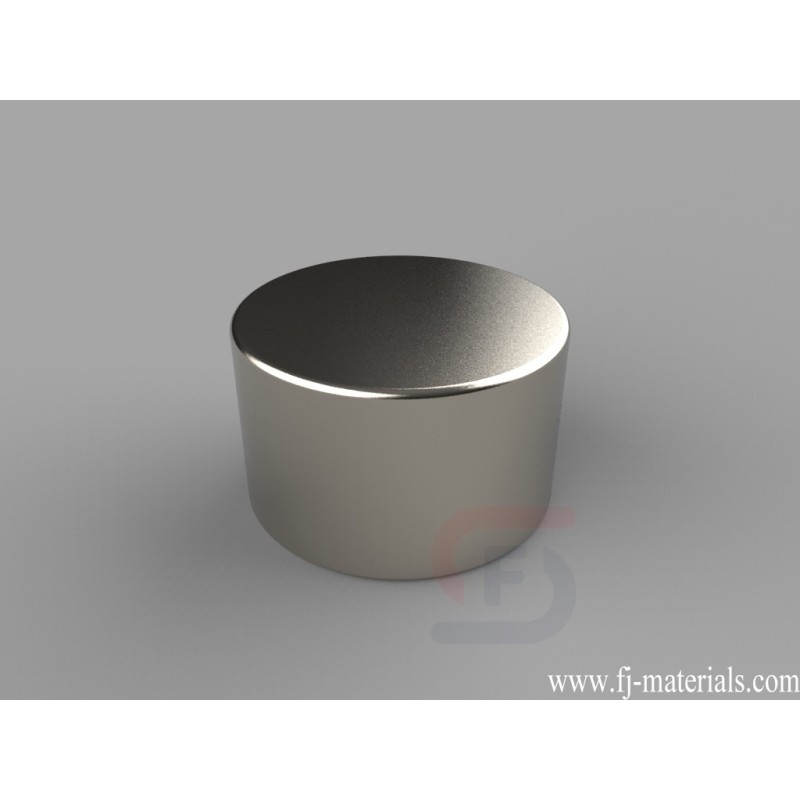

13/16 dia. x 1/2 inch thick Round Disc Magnets | DD8
DD8 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 32.09 lbs.
Yiwu Fenjiao E-commerce Firm supply DD8 Neodymium Disc Magnets with high quality at competitive price.
DD8 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 32.09 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DD8
Data sheet
- Item Number
- DD8
- Material
- NdFeB
- Grade
- N42
- Size
- 13/16" dia. x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.124 oz. (31.9 g)
- Pull Force
- 32.09 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- D. 9.53-12.7mm
DD8 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 32.09 lbs.
