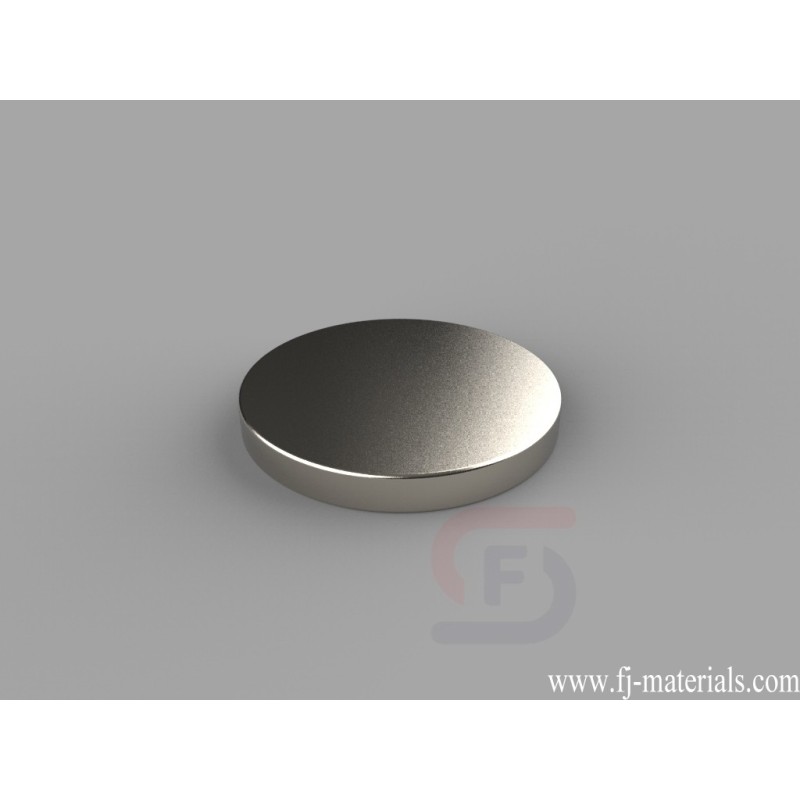

13/16 dia. x 1/10 inch thick Round Disc Magnets | DDH1
DDH1 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 1/10" thick, Axial magnetized. Pull force is approximately 7.99 lbs.
Yiwu Fenjiao E-commerce Firm supply DDH1 Neodymium Disc Magnets with high quality at competitive price.
DDH1 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 1/10" thick, Axial magnetized. Pull force is approximately 7.99 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DDH1
Data sheet
- Item Number
- DDH1
- Material
- NdFeB
- Grade
- N42
- Size
- 13/16" dia. x 1/10" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.45 oz. (12.7 g)
- Pull Force
- 7.99 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
DDH1 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 1/10" thick, Axial magnetized. Pull force is approximately 7.99 lbs.
