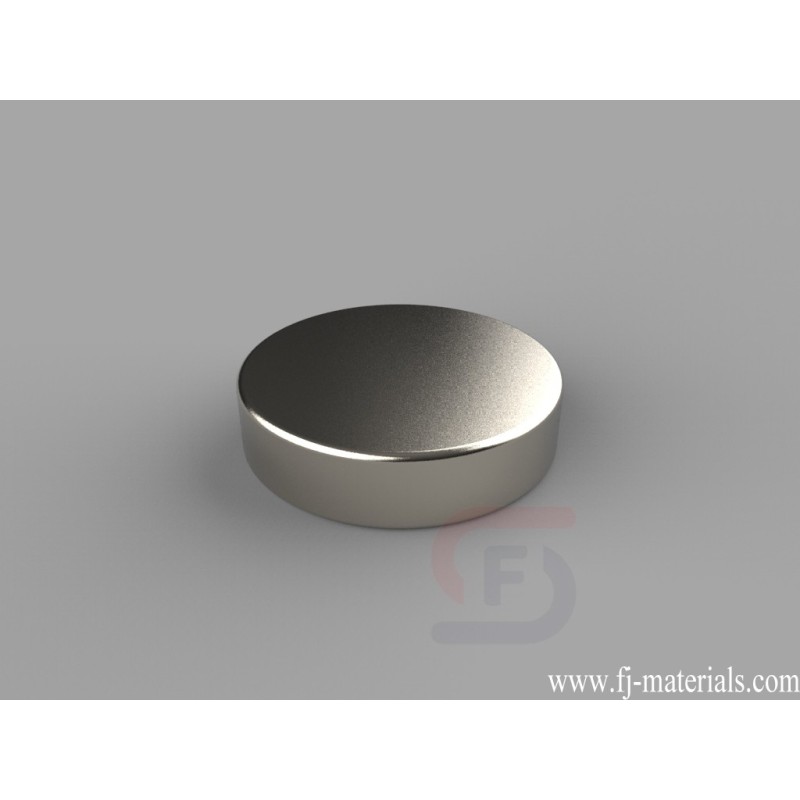

13/16 dia. x 2/10 inch thick Round Disc Magnets | DDH2

DDH2 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 2/10" thick, Axial magnetized. Pull force is approximately 18.22 lbs.

Yiwu Fenjiao E-commerce Firm supply DDH2 Neodymium Disc Magnets with high quality at competitive price.

DDH2 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 2/10" thick, Axial magnetized. Pull force is approximately 18.22 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DDH2

Data sheet

Item Number
DDH2
Material
NdFeB
Grade
N42
Size
13/16" dia. x 2/10" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.45 oz. (12.7 g)
Pull Force
18.22 lbs
Diameter
F. 19.05-25.4mm
Thickness
B. 3.18-6.35mm
