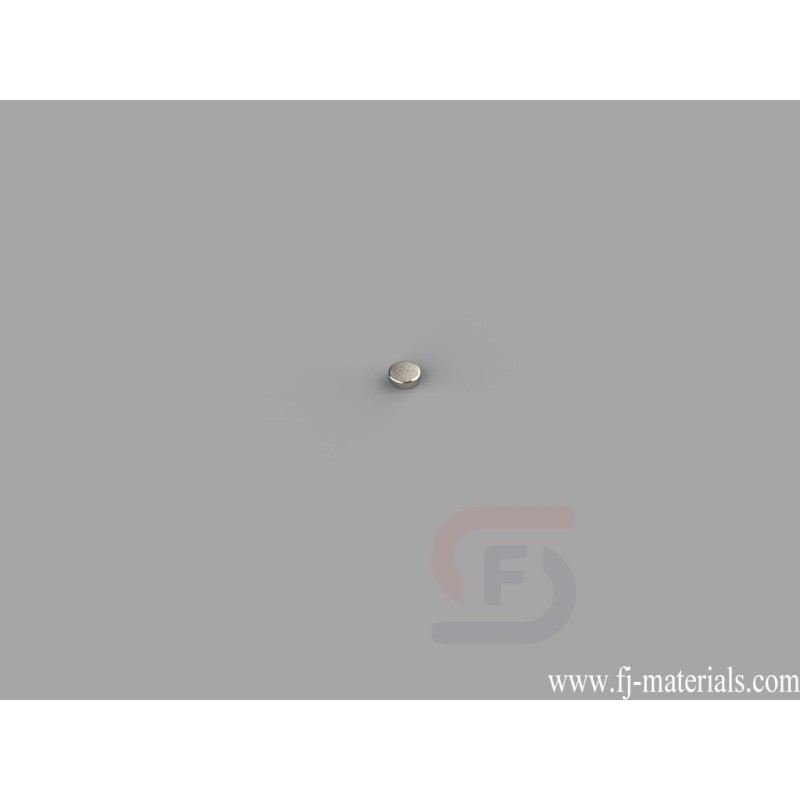

1/10 dia.x 1/32 inch thick Round Disc Magnets | DH101

DH101 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/10" dia.x 1/32" thick, Axial magnetized. Pull force is approximately 0.14 lbs.

Yiwu Fenjiao E-commerce Firm supply DH101 Neodymium Disc Magnets with high quality at competitive price.

DH101 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/10" dia.x 1/32" thick, Axial magnetized. Pull force is approximately 0.14 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DH101

Data sheet

Item Number
DH101
Material
NdFeB
Grade
N42
Size
1/10" dia.x 1/32" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.00106 oz. (0.0302 g)
Pull Force
0.14 lbs
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm
