2/10 dia. x 1/8 inch thick Round Disc Magnets | DH22

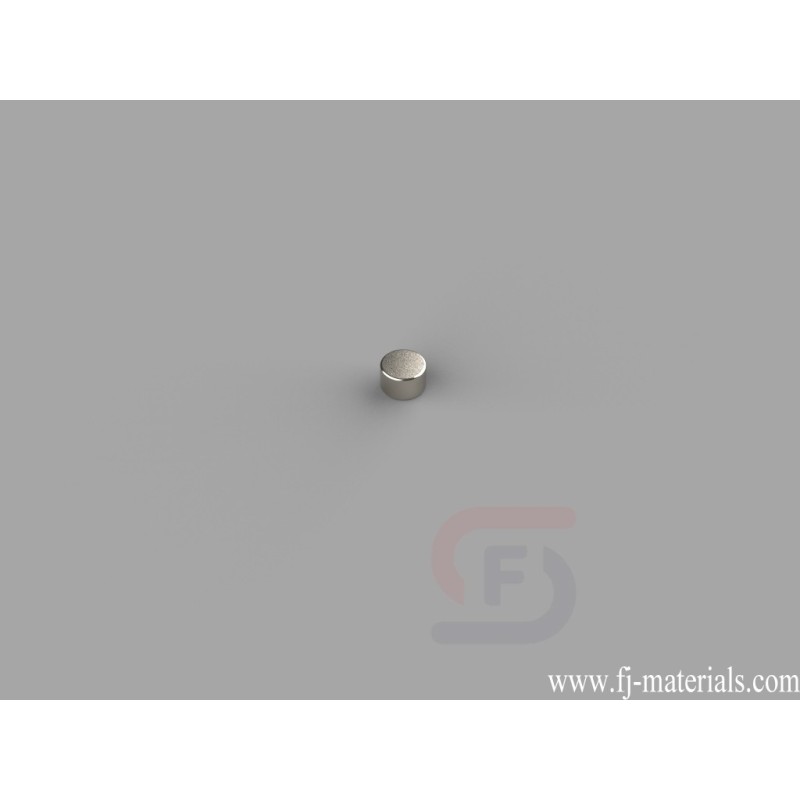

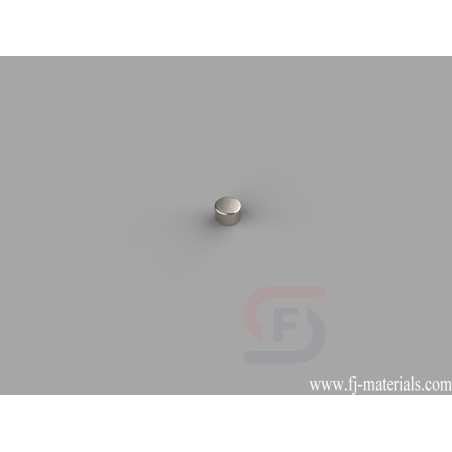

DH22 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2/10" dia. x 1/8" thick, Axial magnetized. Pull force is approximately 1.56 lbs.

Yiwu Fenjiao E-commerce Firm supply DH22 Neodymium Disc Magnets with high quality at competitive price.

DH22 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2/10" dia. x 1/8" thick, Axial magnetized. Pull force is approximately 1.56 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DH22

Data sheet

Item Number
DH22
Material
NdFeB
Grade
N42
Size
2/10" dia. x 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.0170 oz. (0.482 g)
Pull Force
1.56 lbs
Diameter
B. 3.18-6.35mm
Thickness
A. 0.00-3.18mm
