1 dia. x 1/16 inch thick Round Disc Magnets | DX01-N52

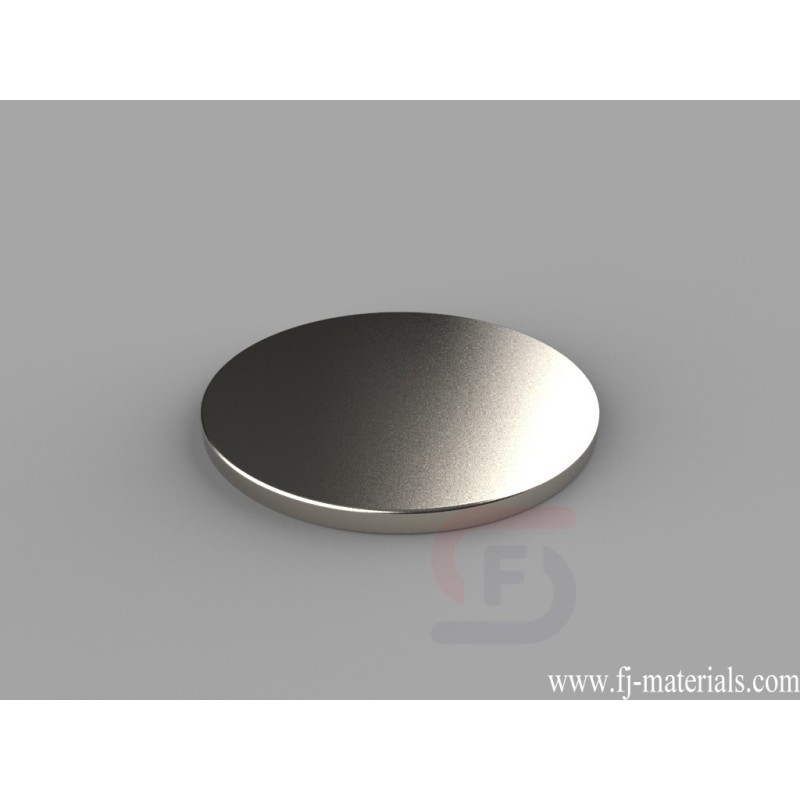

DX01-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 8.42 lbs.
Yiwu Fenjiao E-commerce Firm supply DX01-N52 Neodymium Disc Magnets with high quality at competitive price.
DX01-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 8.42 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX01-N52
Data sheet
- Item Number
- DX01-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 1" dia. x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.213 oz. (6.03 g)
- Pull Force
- 8.42 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
DX01-N52 Neodymium Disc Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1" dia. x 1/16" thick, Axial magnetized. Pull force is approximately 8.42 lbs.
