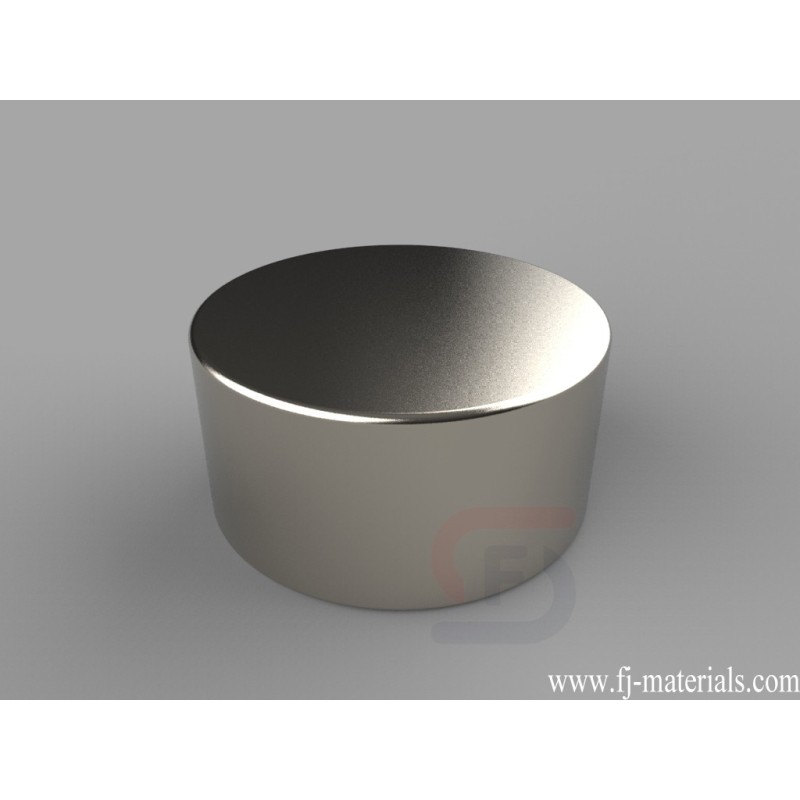

1 dia. x 1/2 inch thick Round Disc Magnets | DX08
DX08 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 44.00 lbs.
Yiwu Fenjiao E-commerce Firm supply DX08 Neodymium Disc Magnets with high quality at competitive price.
DX08 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 44.00 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX08
Data sheet
- Item Number
- DX08
- Material
- NdFeB
- Grade
- N42
- Size
- 1" dia. x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.70 oz. (48.3 g)
- Pull Force
- 44.00 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- D. 9.53-12.7mm
DX08 Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1/2" thick, Axial magnetized. Pull force is approximately 44.00 lbs.
