1 dia. x 3/4 inch thick Round Disc Magnets | DX0C

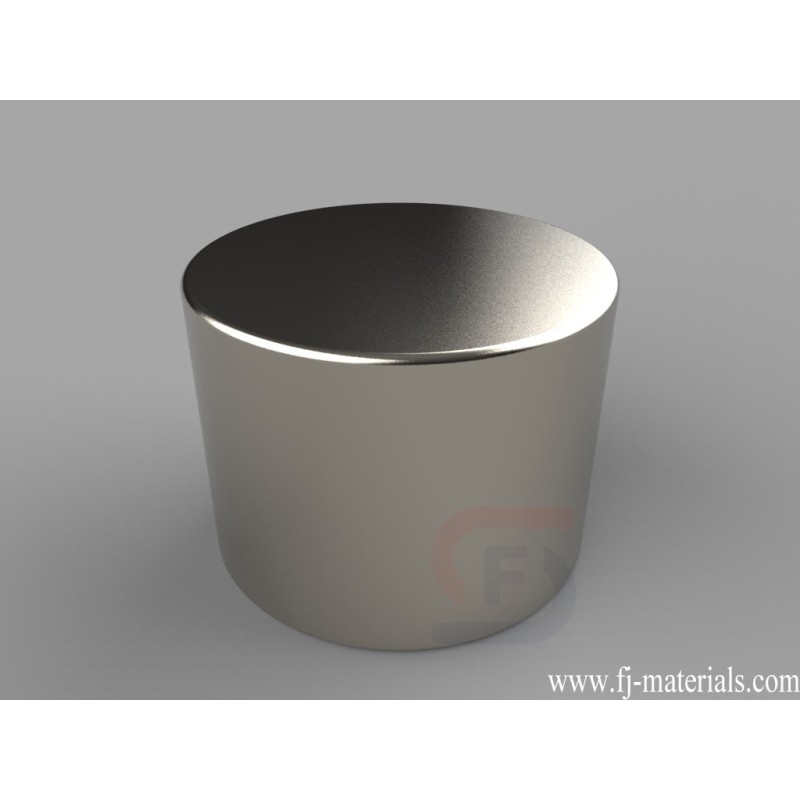

DX0C Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 55.30 lbs.
Yiwu Fenjiao E-commerce Firm supply DX0C Neodymium Disc Magnets with high quality at competitive price.
DX0C Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 55.30 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX0C
Data sheet
- Item Number
- DX0C
- Material
- NdFeB
- Grade
- N42
- Size
- 1" dia. x 3/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.55 oz. (72.4 g)
- Pull Force
- 55.30 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- E. 12.7-19.05mm
DX0C Neodymium Disc Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 3/4" thick, Axial magnetized. Pull force is approximately 55.30 lbs.
